DSW-0118

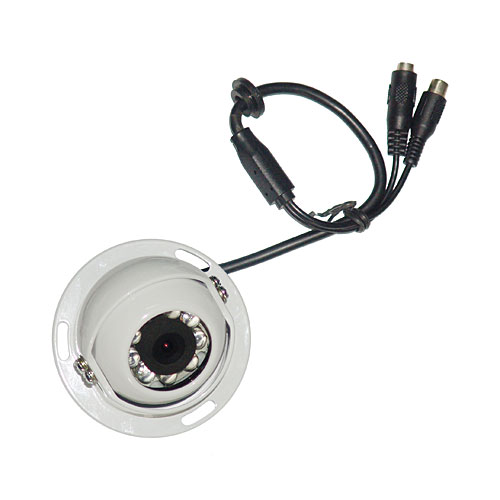

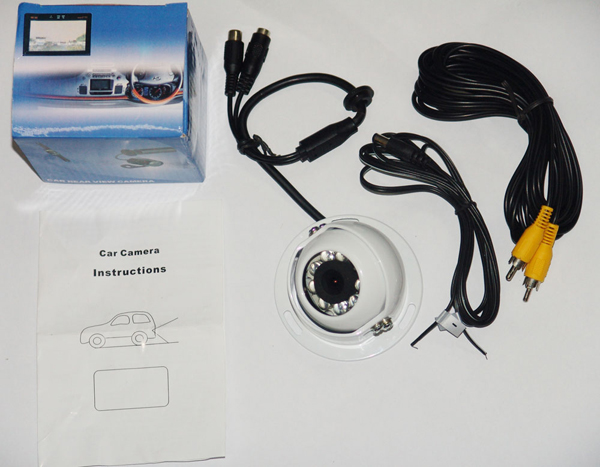

Car Backup Reversing Assistant Camera
- Image Sensor:SHARP COLOR CCD
- Effective Pixels:PAL:512(H)*582(V) NTSC:512(H)*492(V)
- Horizontal Resolution:420TVL
- Minimun Illumination:0 Lux when LED on,color turns to black and white automatically
- Lens:2.4mm
- Viewing Angle:120 degrees
- Synchronizing System:Internal
- S/N Ratio:°48db (AGC-OFF)
- Signal System:PAL or NTSC optional
- Shutter speed:1/50(1/60)-1/100,000sec
- Video Output:RCA connectors,1.0Vp-p,75 Ohm
- Power Supply:DC 12V
- Current Consumption:Max. 300mA
- Operating Temperature:-30°C~+70°C,RH95% Max.
- Material:zinc alloy
- Size:82mm*60mm*55mm (bottom diameter*top diameter*height)
- IP66
- Auto white balance
- Net Weight:Approx. 280g
