Production: Passive UTP Video Transceiver Model: AVT101P
Description

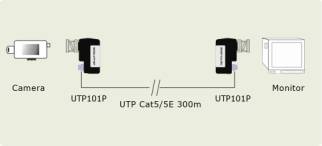

The model AVT101P video transceiver is passive(non-amplified) evice that allow the transmission of real-time monochrome or color video via Unshielded Twisted-Pair (UTP) cable. With a tiny dimension the unit can be directly equipped to camera with BNC connector as well as provides one channel UTP output with screw terminals available for easy connection. UTP101P can work with one pair of units on each end of a pair of wires, can also work with other passive transceivers (e.g.UTP101P, UTP104P) and active receivers (e.g. UTP101AR, UTP104AR) products with transmission distance up to 300m and 600m prospectively.
Features
Compact and Tiny dimension
Connected to camera directly.
Transmitting video signals via UTP cat5/5e cable
Transmission distance of up to 300m working with passive transceivers (e.g. UTP101P, UTP104P)
Transmission distance of up to 600m working with active products.
Real-time transmission
Supports all bandbase signal including PAL, NTSC, SECAM
No power required
Exceptional interference rejection
Built-in transient protection
Certification
CE FCC
Specification
Items |
AVT101P |
|
Video |
Supporting Video Mode |
All Baseband Signals, |
Transmitting Band |
5MHz Maximum |
|
Maximal Transmission Distance |
300meters(working with UTP101P) |
|
Interference Rejection |
>60dB |
|
Attenuation |
1.5dB Maximum |
|
Connection |
Video Input/OUT Connector |
Male BNC;Resistance: 75 |
Connector for UTP |
Screw terminals; Resistance: 50 |
|
Video Input Protection |
2KV(common mode),10/700us |
|
Video Output Protection |
2KV(different mode),10/700us |
|
Stability |
MTBF |
>50,000h |
Physical |
Dimensions (LWH) |
37 22 21mm |
Housing Material |
ABC Engineering Plastic |
|
The Color of Unit |
Black |
|
Net Weight |
0.068g |
|
Environmental |
Operating Temperature |
-20~70 |
Relative Humidity(non-condensing) |
0~95% |
|
Storage Temperature |
-40~150 |
|
Casing |
Casing Volume |
122 86 30mm |
