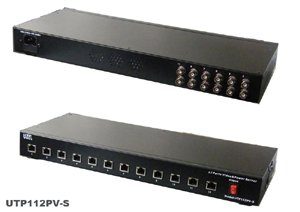

AVT112PV-S

Product: 12-Channel Transceiver with Video and Power odel: AVT112PV-S


Features:

  • Transmit a color Video signal up to 300M / 1000Ft, and a full motion monochrome (B&W) video signal up to 500M / 1600Ft.
  • Transmit Power signal up to 250M / 750Ft. (Please see Voltage Drop List).
  • BNC male and RJ45 Jack; Input Power 100-250 Voltage
  • Wave Filter Design, Anti-Static Design, Confirm to IEC 61000-4-2:1995 Standard
  • Interference Rejection
  • 1U Rock

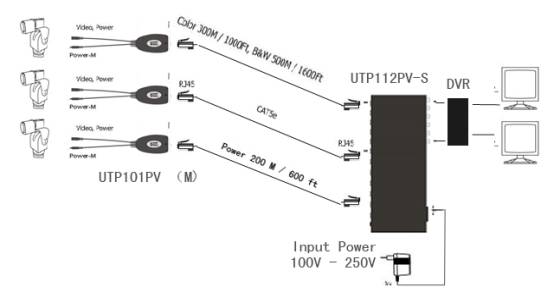

Wiring Diagram:
Specification
?/strong>

Model

AVT112PV-S

Input Power

110-250V?AC

Max Power Supply

150W

Input Connector

12?RJ45?Connectors

Output Connector

12?BNC?Connectors

Video Distance

Video up to 300M/1000Ft

Power Distance

Power up to 250M/750Ft

Resistance

75 Ohm

Distortion

<3%

Brightness

No?Adjust

Video Input Protection

2KV (common mode) IEC6100-4-5/1955(GB/T) 1726,5-1999

Video Output Protection

1KV (common mode) ?10/700us)

Material Protection

Iron Material

Product Dimensions (LWH)

L:43?W:17.5?H:4.5 ?CM)

Packing Dimensions (LWH)

L:57?W:26.5?H:9.5 ?CM)

Net Weight

2.68KG

Indication Light

No

Warranty

2 years

 *Specifications are subject to change without notice



1

2

3

4

5

6

7

8

T568A:

White Green

Green

White Orange

Blue

White Blue

Orange

White Brown

Brown

T568B:

White Orange

Orange

White Green

Blue

White Blue

Green

White Brown

Brown

Voltage Drop According to Cable Length (24AWG):


Transmission Distance

Transmission Voltage
(12V DC, 0.5A)

Transmission Voltage
(12V DC, 1A)

Transmission Voltage
(12V DC, 1.5A)

50M / 160Ft

13.5V

15.5V

17.0V

100M / 320Ft

15.5V

18.5V

22.0V

150M / 500Ft

17.0V

22.0V

27.0V

200M / 650Ft

18.5V

25.5V

32.0V

300M/1000Ft

22V

32V

42V

aution:

  • UTP112PV-S is not waterproof and not to be used outdoors.
  • Do not operate the device with wet hands
  • If using T568A standard, make sure the other end is matched to T568A
  • If using T568B standard, make sure the other end is matched to T568B
