AVT101AT

Product: single-channel active video Transmitter Model: AVT101AT
1

Description
The model AVT101AT video transmitter is active (non-amplified) device that allows the transmission of real-time monochrome (B/W) or color video via Unshielded Twisted Pair (UTP) cable. Baseband (composite) signals of any type are supported.

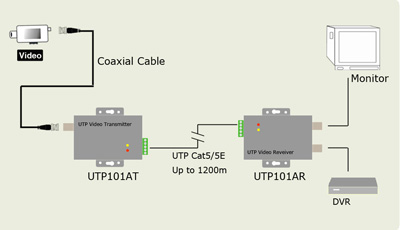

The unit receives one channel of video from camera using coaxial cable and sends out one channel of video signal with screw terminals for connection. The AVT101AT is compatible with active receivers (e.g.AVT101AR,AVT104AR) with transmission distance of up to 1200m.Different transmission distance is adapted through adjusting switches and quality video is available.
The unparalleled interference rejection and low emissions of the AVT101AT allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant.

Features
Power supplied :12V AC/DC
Transmission signal: Vpp composite video
Signal Transmission via UTP cat 5/5e
Transmission distance of up to 600m working with active receivers (e.g. AVT101AR,AVT104AR)
Quality image adjusted with adjusting switches available
Supports all Baseband signals including PAL, NTSC,SECM
Video receiving connectors through screw terminals
Double BNC video outputs
Built-in transient protection
Exceptional interference rejection

Certification
CE FCC 1

Specification


Items

AVT101AT

Power properties

Adaptive Voltage Arrange

12V-40V DC or 9V-24V AC(50Hz)

Power Consumption

<100 mw

Video
Transmitting properties

Supporting Video Mode

All Baseband Signals,
including PAL, NTSC, SECAM

Signal Band

250MHz(-3db)

Balance Band

0-6MHz

Maximal Transmission Distance

1200m (working with UTP101AR,
UTP104AR,UTP108AR)
Transmitting Cable: UTP Cat5E

Interference rejection

>75db

Connection
properties

Video Input Connectors

Female BNC
Resistance: 75

Connector for UTP Transmission

Screw Terminals Set
Resistance: 50

Protections

Video Output Protection

2KV(common mode),10/700us
IEC6100-4-5/1955(GB/T 1726,5-1999)

Video Input Protection

2KV (different mode),
4KV (common mode)
IEC6100-4-5/1955(GB/T 1726,5-1999)

Video Input Protection for Over
Current

Protection for Over 100mA

Indicators

Power LED

Red

Signal LED

Yellow

Stability

MTBF

>30,000h

Physical
Properties

Dimensions (LWH)

180 85 44mm

Housing Material

Metal

The Color of Unit

Silver White

Weight

190g

Environmental

Operating Temperature

-20~70

Relative Humidity(non-condensing)

0~95%

Storage Temperature

-40~150

Casing

Casing Volume(LWH)

122 86 30mm
