Product: Eight-channel active video receiver Model: AVT108AR
Description
The model AVT108AR is Eight-channel active (amplified) device that allows reception of real-time monochrome (B/W) or color video using Unshielded Twisted-Pair(UTP) cable. The unit receives eight channels of video from transmitters with both RJ45 and screw terminals available for connections as well as provides eight pairs of BNC?video outputs with double outputs in every channel.

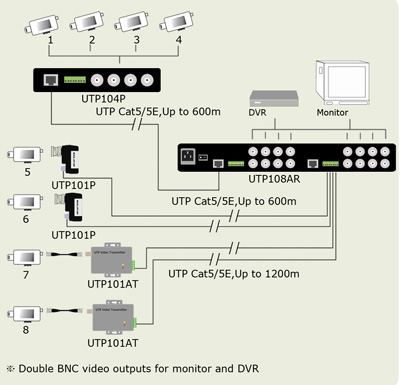

The UTP108AR is compatible with passive transceivers (e.g.AVT101P,AVT104P) and active transmitter (e.g.AVT101AT) with transmission distance up to 600m and 1200m respectively. And quality videos can be adjusted in every channel using adjusting switches on the device front panel.
With in standard 1U structure UTP108AR is rack-mountable and excellent for multiple spots surveillance.
Features
Power supplied :220V AC
Transmission signal: 1 Vpp composite video
Signals Transmission via UTP Cat5/5e
Eight active receiver channels in one product
Transmission distance of up to 600m working with passive transceivers (e.g. AVT101P,AVT104P,AVT108P)
Transmission distance of up to 1200m working with active transmitter (e.g. AVT101AT)
Quality image adjusted with adjusting switches available in every channel
Compatible with all bandbase signal including PAL, NTSC, SECM
Video receiving connectors with both RJ45 connector and screw terminals available
Double BNC video outputs
Exceptional interference rejection
Built-in transient protection
Standard 1U structure
Certifications
CE CC
Specification
Items |
AVT108AR |
|
Power Properties |
Adaptive Voltage Arrange |
220V AC(50-60Hz) |
Power Consumption |
<1500mw |
|
Connector |
Standard AC Jack |
|
Video |
Supporting Video Mode |
All Baseband Signals, |
Signal Band |
250MHz(-3db) |
|
Balance Band |
0-6MHz |
|
Maximal Transmission Distance |
1200m (working with UTP101AT) |
|
Attenuation |
1.5 dB Maximum |
|
Interference Rejection |
>75db |
|
Connection |
Video Output Connectors |
8 2 Female BNC |
Resistance |
75 |
|
Connectors for UTP Reception |
2 RJ45 and Screw Terminal Sets |
|
Resistance |
50 |
|
Protections |
Video Output Protection |
2KV(common mode),10/700us |
Video Input Protection |
2KV (different mode), |
|
Video Input Protection for Over |
Protection for Over 100mA Current |
|
Video Adjustments |
Adjustment |
4 Blue Adjusting Switches per Channel |
Adjusting Categories |
Categories: 0-600m, 600-900m, |
|
Indicators |
Power LED |
Red |
Signal LED |
Yellow |
|
Stability |
MTBF |
>30,000h |
Physical |
Dimensions |
430 95 44.5mm |
Housing Material |
Metal |
|
The Color of Unit |
Black |
|
Weight |
1520g |
|
Environmental |
Operating Temperature |
-20~70 |
Relative Humidity(non-condensing) |
0~95% |
|
Storage Temperature |
-40~150 |
|
Casing |
casing volume(LWH) |
550 255 100mm |
