BABY MONITOR BM-140
Click:
  BM-140
2.5 inch TFT Baby Monitor Kit
Feature:
2.5" TFT LCD Monitor with built-in 2.4GHz 4-Channel Receiver
High quality Color CMOS sensor for crisp, clear images
Built-in microphone for audio monitoring
4-channel operation allows multiple(1-4)camera system (optional)
Manual or Auto Scan between selected channels(1-4)
Long operation range: up to 100 m line of sight or 30 m though obstructions (walls/ceilings)
both the camera and monitor build in rechargeable li-battery.
the monitor made as MP4 pattern,it is very light and portable.
Compact , Lightweight and Mini size camera
Swivel Bracket included for adjustable viewing angles
Easy to install: wall /ceiling mountable


    Description:

Monitor Specification Camera Specification Standard Package Content
Frequency:ISM 2,400 - 2,483MHz
Antenna: Omni-directional antenna
Channel: 1-4 (Flip-type switch)
Intermediate Frequency: 480MHz
Frequency Stabilization:+/- 100KHz
Demodulation Mode: FM
Receiving Sensitivity:<=-85dBm
Video Output:1Vp-p at 75 ohm, S/N>38dB
Audio Output:1Vp-p at 600 ohm
Power:DC 5V;Buit-in Li-Battery
Operating Temperature: -10oC~+40oC
Operating Humidity: 85%RH
Dimension(WxLxH): 130x23x70mm
Weight: 250g
Frequency:ISM 2,400 - 2,483MHz
Imaging Sensor:1/3 inch OMNIVISION Color CMOS
Horizontal Resolution: 380TV Line
CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
View Angles:62 degrees
Minimum Illumination: 1.0Lux / F1.5
Gain Control:Automatic
Transmission Power: 10mW
Consumption Current: 80 mA
Modulation Mode: FM
Bandwidth:18M
Operating Range:30m/100m (Obstructed / Unobstructed)
Power:5V;Buit-in Li-Battery
Operating Temperature: -10oC~+40oC
Operating Humidity: 85%RH
Dimension(WxLxH):72x22x65 mm
Weight:60g

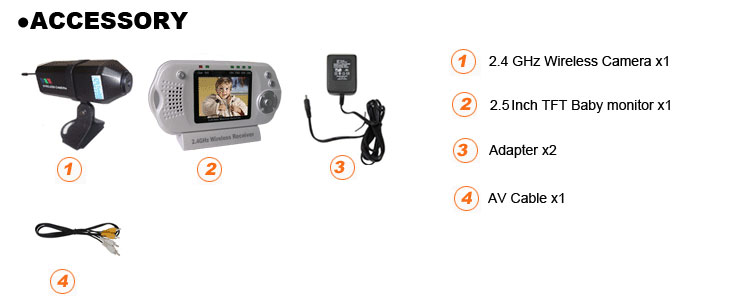

2.4GHz Wireless Color Camera with Built-in Microphone
2.4GHz Wireless 4-channel LCD Receiver
A/V Cable
5V Power Adaptor for Camera
Earphone
5V Power Adaptor for LCD Receiver
Bracket for Monitor
