HD-618SD

High Speed Dome

  • Suitable size,elegant design;
  • Built-in imported integrated camera module;
  • 1/4" IT EXVIEW HAD CCD;
  • Min.Illumincation 0.002 Lux.(0 Lux with IR);
  • Horizontal 360° continuous tuming.
  • Speed changed according to zoom change;
  • 128 pieces preset point;
  • The highest preset point call back speed up to 400° /S;
  • Preset point call back precision up to 0.025°;
  • Support OSD menu function;
  • 8 pieces point to point scan way;
  • 8 pieces auto patrol way;
  • 8 pieces privacy masking zone;
  • 4 pieces auto-study trace;
  • Support plan duty function;
  • Image frozen function,effectively save HDD space;
  • Camera position remote control function;
  • Menu passward protection function
  • Support Pelco-P,Pelco-D,VC....multi-protocol;
  • Input voltage:AC24V or DC12V selectable;
  • Anty-power surge adopter to protect circuit;
  • 8 channels alarm PCB is selectable;
  • cart
Description:
Compatible Camera Mould Type:

HD627LD:
Built-in LVC-372HP camera,27 times optical zoom
x10 time digital zoom(f=3.25-35.88mm)
HD627YD:
Built-in YK20AZR-HK camera,22 times optical zoom
x16 time digital zoom(f=3.9-35.8mm)

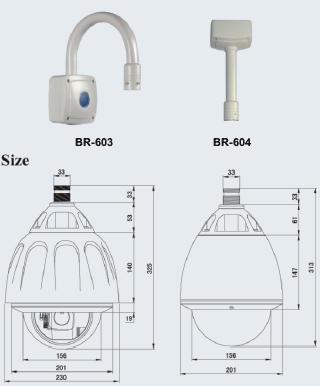

Selectable Brachet:
Type HD-618SD
Camera Camera SONY FCB-EX480CP
CCD Size 1.4" IT EXview HAD CCD
Max. Pixels 512(H)*582(V)
Resoluation 480TVL
S/N >=48db
ZOOM 18 opitcal*12digital(f4.1-73.8mm)
Min.Illumination 0.002Lux(F1.4)
Iris Auto
Video Output 1.0Vpp 75
Sync System Internal
Contrast Emendation 0.45
Gain Control 29db(max)
Shutter Control Way Auto electronic shutter or non-screen flash way
Pan/Tilt Movement Horizontal 360° Continuous turning
Preset Call Back Max speed 400°/s
Manual Control 0.1°/s~180°/s
Point to Point Scan 15°/s~60°/s
Preset Point 128
Preset Point Precision <=0.025°
Cable Connection Rs485 anti-surge adopter
Baud Rate 9600、4800、2400bps(Selectable)
Construction Die cast aluminum
Others Working Valtage DC12V
Power 30W
Color White
Size As chart
Weight 2.5kg
Installation Way Wall mount,Ceilling mount
Working Temperature -35°C~50°C
Storage Temperature -20°C~60°C
