• Piezo Transducer KPT-1410
  • Click:
KPT-1410

Piezo Transducer

  • Rated Voltage:12Vp-p Square Wave
  • Max.Allowable Voltage:30Vp-p Square Wave
  • Max.Rated Current:2mA at 4.0KHz/12Vp-p Square Wave

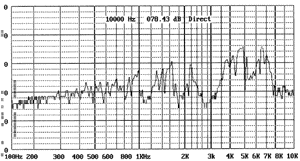

  • Min.Sound Pressure Level:80dB at 4.0KHz/12Vp-p
  • Square Wave/10cm

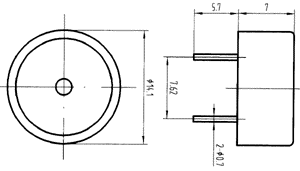

  • D(mm):?4.1
  • H(mm):7
  • Resonant Frequency:4.0?.5KHz
  • Operating Temperature:-20~+80
  • Weight:1g
  • Capacitance at 120Hz:10nF
  • cart
Description:
  • Piezo Transducer
  • Piezo Transducer
