Model No.: 128IA-500 / 128IA-508

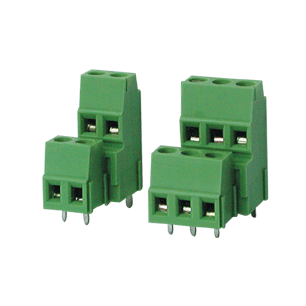

PCB Terminal Block 128IA-500 / 128IA-508

5.00/10.00mm 5.08/10.16mm

Voltage rating:300VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:12-24AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 128IA-500 / 128IA-508PCB Terminal Block 128IA-500 / 128IA-508
Model No.: 128IB-500 / 128IB-508
PCB Terminal Block 128IB-500 / 128IB-508

5.00/10.00mm 5.08/10.16mm

Voltage rating:300VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:12-24AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5 Satety apporval:<img src="/templets/images/dswbrand/r.gif">
PCB Terminal Block 128IB-500 / 128IB-508PCB Terminal Block 128IB-500 / 128IB-508
Model No.: 127-500 / 127-508
PCB Terminal Block 127-500 / 127-508

5.00/10.00mm 5.08/10.16mm

Voltage rating:250VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:16-26AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5
PCB Terminal Block 127-500 / 127-508PCB Terminal Block 127-500 / 127-508
Model No.: 129-500 / 129R-508
PCB Terminal Block 129-500 / 129R-508

5.08/10.16mm

Voltage rating:300VAC Current rating:10Amps/way max. Insulation resistance:5000M/1000V Wire range:12-24AWG Operation temperature:-33 to+120 Torque:4kg-cm/M2.5
PCB Terminal Block 129-500 / 129R-508PCB Terminal Block 129-500 / 129R-508
Model No.: 135-635
PCB Terminal Block 135-635

6.35mm

Voltage rating:300VAC Current rating:15Amps/way max. Insulation resistance:5000M/1000V Wire range:10-24AWG Operation temperature:-33 to+120 Torque:4kg-cm/M3
PCB Terminal Block 135-635PCB Terminal Block 135-635
Model No.: 150-950
PCB Terminal Block 150-950

9.50mm

Voltage rating:300VAC Current rating:30Amps/way max. Insulation resistance:5000M/1000V Wire range:10-26AWG Operation temperature:-33 to+120 Torque:4kg-cm/M3
PCB Terminal Block 150-950PCB Terminal Block 150-950
Model No.: 145R-500 / 145V-500
PCB Terminal Block 145R-500 / 145V-500

5.00/7.50mm

Voltage rating:300VAC Current rating:15Amps/way max. Insulation resistance:1000M/500V Wire range:12-22AWG Operation temperature:-40 to+105 Screw Torque Value:4kg-cm/M2.5
PCB Terminal Block 145R-500 / 145V-500PCB Terminal Block 145R-500 / 145V-500
