| Model No : Swing Gate Opener2 | ||

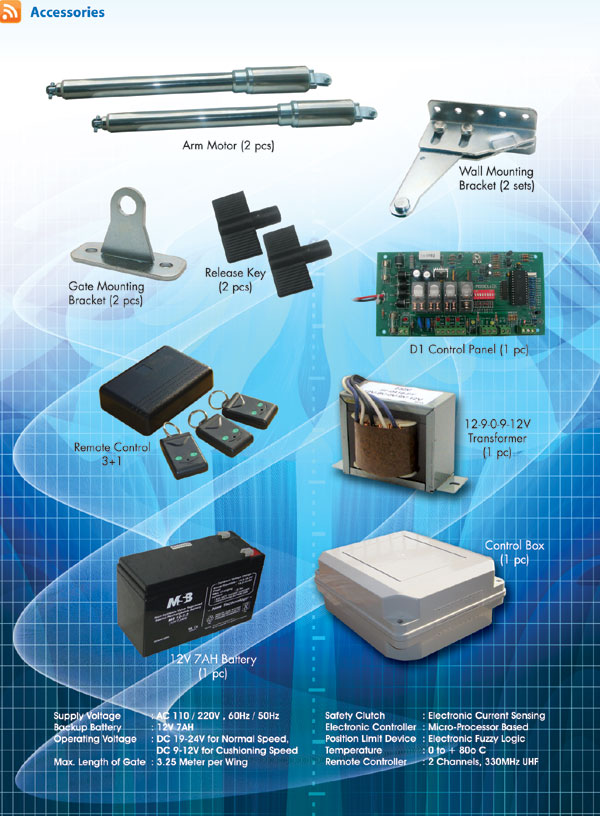

 Each set of opener mainly has two parts: the control box and the arm motors Supply Voltage:AC 110 / 220V,60Hz / 50Hz Backup Battery:12V 7AH Operating Voltage:DC 19-24V for Normal Speed,DC 9-12V for Cushioning Speed Driving Method:Screw Driven Piston Type Max. Output Power:80W Per Driver Gear Box:Dual Steps Planetary Reducer Operating Cycle:8-10 Seconds Per 90°(Approx) Max.Piston Stroke:310mm Max.Piston Speed:3cm /sec Max.Weight of Gate:250Kgs per Wing Max Length of Gate:3.25Meter per Wing Safety Clutch:Electronic Current Sensing Electronic Controller:Micro-Processor Based Position Limit Device:Electronic Fuzzy Logic Temperature:-20°C~+60°C Remote Controller:2 Channels,330MHz UHF | |
 |
