FF-030PA/PK
FF-030PA/PK
Precious metal-brush motors
OUTPUT:0.05W-2.2W (APPROX)
WEIGHT:11g (APPROX)
Typical Applications :
Audio and Visual Equipment> CD/MD Player / Car CD Player / Camcorder
Office Automation Equipment> CD/DVD-ROM Drive
Home Appliances> Blood Pressure Meter

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mNm gcm W mNm gcm A
FF-030PA 10180 3.5 - 6.0 5 11700 0.050 9230 0.19 0.50 5.1 0.48 2.35 24 0.70
FF-030PK 09210 1 - 5 5 10500 0.046 8140 0.16 0.44 4.5 0.37 1.96 20 0.55
08250 1 - 6 6 10500 0.041 8020 0.13 0.43 4.4 0.36 1.81 18 0.43

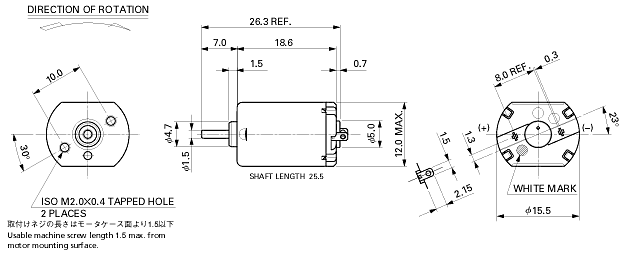

UNIT: MILLIMETERS

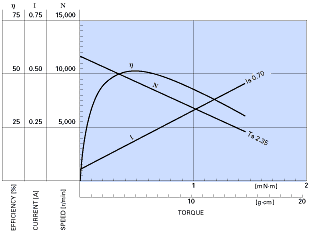

FF-030PA-10180 5.0V
chart

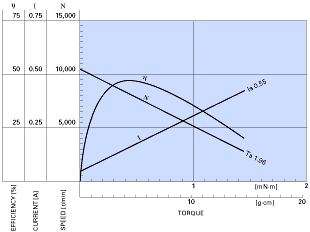

FF-030PK-09210 5.0V
chart
