FF-180PH/SH
FF-180PH/SH
Precious metal-brush motors
OUTPUT:0.05W-5.6W (APPROX)
WEIGHT:32g (APPROX)
Typical Applications : Home Appliances> Electric Shaver / Tooth Brush

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mNm gcm W mNm gcm A
FF-180PH 2852(*1) 1 - 3 2.4 8100 0.15 6850 0.82 1.82 18.6 1.30 11.8 120 4.50
4022(*1) 1.0 - 1.5 1.2 9400 0.40 7830 1.99 1.76 17.9 1.44 10.5 107 9.90
FF-180SH 2657(*1) 1 - 3 2.4 7700 0.13 6500 0.70 1.64 16.7 1.11 10.5 107 3.80
4026(*1) 1.0 - 1.5 1.2 8300 0.30 6990 1.60 1.64 16.7 1.20 10.4 106 8.55
(*1) CCW shifted commutation (CCW+)

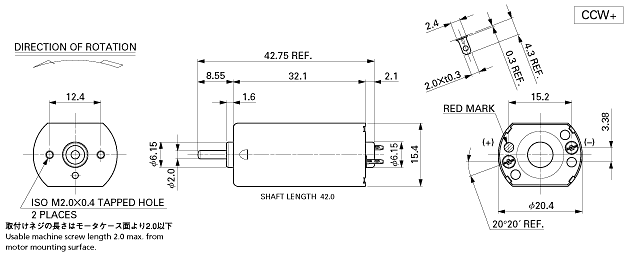

UNIT: MILLIMETERS

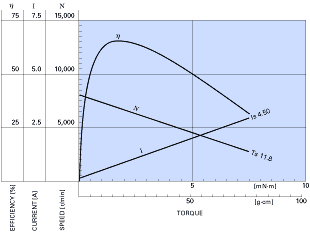

FF-180PH-2852 2.4V
chart

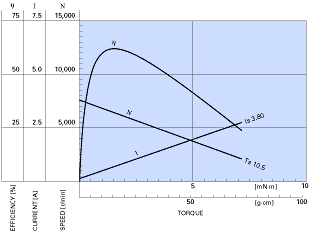

FF-180SH-2657 2.4V
chart
