FF-N20PA/PN
FF-N20PA/PN
Precious metal-brush motors
OUTPUT:0.03W-1.0W (APPROX)
WEIGHT:5g (APPROX)
Typical Applications :
Audio and Visual Equipment> Car CD/MD Player / Camcorder
Precision Instruments> Camera

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mNm gcm W mNm gcm A
FF-N20PA 10190 2 - 5 3 12100 0.045 9390 0.16 0.21 2.1 0.20 0.92 9.4 0.54
FF-N20PN 08260 1.5 - 6.0 5 14600 0.043 11150 0.14 0.26 2.6 0.30 1.08 11 0.45

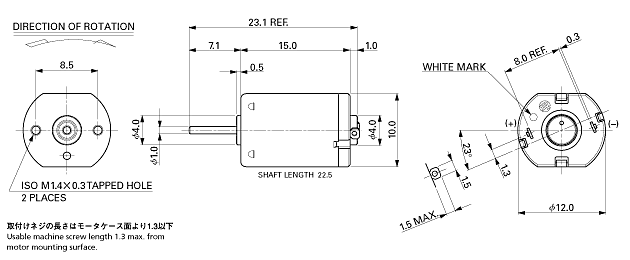

UNIT: MILLIMETERS

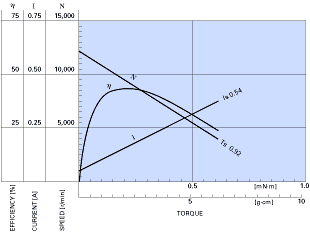

FF-N20PA-10190 3.0V
chart

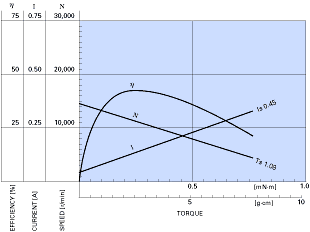

FF-N20PN-08260 5.0V
chart
