FK-130RH/SH
FK-130RH/SH
Carbon-brush motors
OUTPUT:0.2W-10W (APPROX)
WEIGHT:24g (APPROX)
Typical Applications :
Office Automation Equipment> Printer
Automotive Products> Rearview Mirror / Head Light Beam Level Adjuster

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mNm gcm W mNm gcm A
FK-130RH 09490 6 - 18 12 9000 0.034 6990 0.12 0.88 8.9 0.64 3.92 40 0.41
15210 4.5 - 6.0 4.8 8300 0.075 6540 0.28 0.89 9.0 0.61 4.17 43 1.03
FK-130SH 09450 6 - 24 12 7200 0.030 5680 0.11 1.12 11.4 0.66 5.30 54 0.42
16180 4 - 12 12 18000 0.13 14900 0.62 2.36 24.1 3.68 13.7 140 3.00

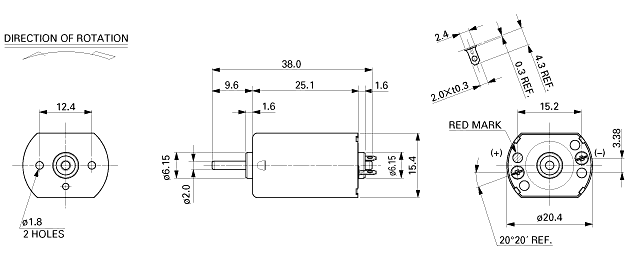

UNIT: MILLIMETERS

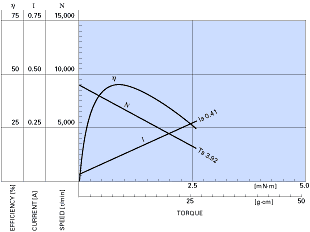

FK-130RH-09490 12.0V
chart

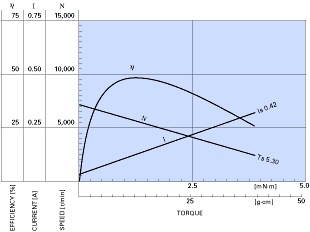

FK-130SH-09450 12.0V
chart
