FK-180SH
FK-180SH

  Carbon-brush motors
OUTPUT:0.3W-14W (APPROX)
WEIGHT:32g (APPROX)
Typical Applications :
Office Automation Equipment> Printer
Home Appliances> Electric Shaver / Tooth Brush

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mNm gcm W mNm gcm A
FK-180SH 09450 12 - 24 12 4400 0.021 3500 0.082 1.33 13.6 0.49 6.54 67 0.32
17140(*1) 6 - 12 6 7800 0.085 6390 0.39 2.04 20.8 1.36 11.3 115 1.75
(*1) CCW shifted commutation (CCW+)

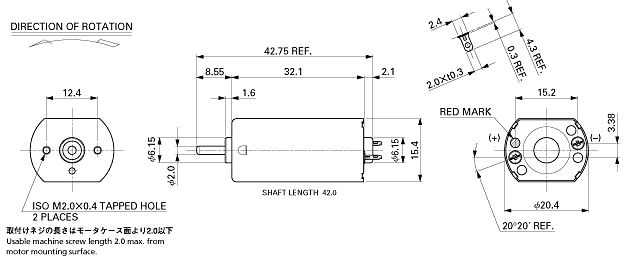

UNIT: MILLIMETERS

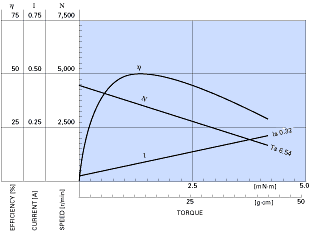

FK-180SH-09450 12.0V
chart

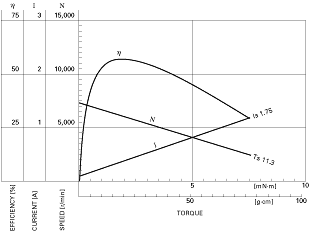

FK-180SH-17140 6.0V
chart
