RF-330TA
RF-330TA
Precious metal-brush motors
OUTPUT:0.01W-0.6W (APPROX)
WEIGHT:32g (APPROX)
Typical Applications : Audio and Visual Equipment> Volume Drive
Home Appliances> Air Freshener

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mNm gcm W mNm gcm A
RF-330TA 09500 2 - 8 4.5 3300 0.010 2700 0.045 0.40 4.1 0.11 2.21 23 0.20

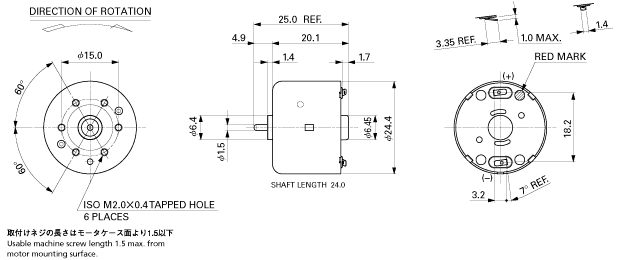

UNIT: MILLIMETERS

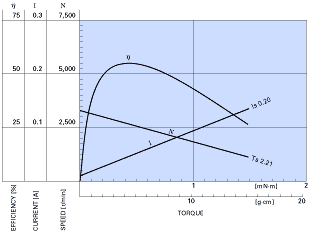

RF-330TA-09500 4.5V
chart
