RF-500TB
RF-500TB
  OUTPUT:0.01W-2.0W (APPROX)
WEIGHT:45g (APPROX)
  Typical Applications :
Audio and Visual Equipment>CD Player / DVD Player / VCR


MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mNm gcm W mNm gcm A
RF-500TB 14415 1.5 - 9.0 5 3100 0.026 2540 0.12 1.23 12.6 0.33 6.86 70 0.54
12560 1.5 - 12.0 6 2700 0.020 2180 0.084 1.13 11.6 0.26 5.88 60 0.35

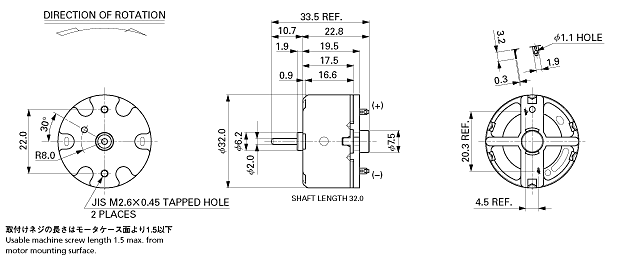

UNIT: MILLIMETERS

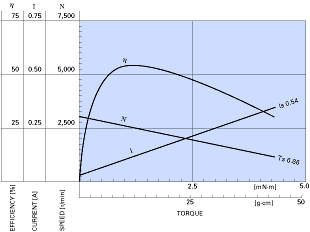

RF-500TB-14415 5.0V
chart

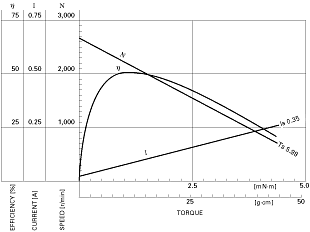

RF-500TB-12560 6.0V
chart
