RS-360RH/SH
RS-360RH/SH
Carbon-brush motors
OUTPUT:0.7W-40W (APPROX)
WEIGHT:55g (APPROX)
Typical Applications : Office Automation Equipment> Copy Machine
Precision Instruments> Vending Machine
Home Appliances> Massager / Vibrator

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mNm gcm W mNm gcm A
RS-360RH 2885 3 - 8 6 13700 0.38 11210 1.71 4.64 47.2 5.43 25.5 260 7.70
10500 12 - 25 12 4500 0.050 3320 0.14 2.15 21.9 0.75 8.24 84 0.40
RS-360SH 2885 3 - 9 7.2 12500 0.36 10380 1.76 7.00 71.3 7.59 41.2 420 8.60
10500 12 - 25 12 3500 0.050 2590 0.14 2.74 28.0 0.74 10.6 108 0.41

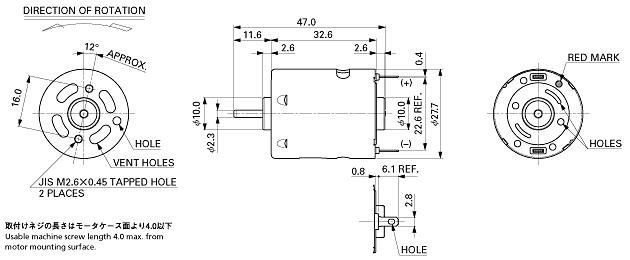

UNIT: MILLIMETERS

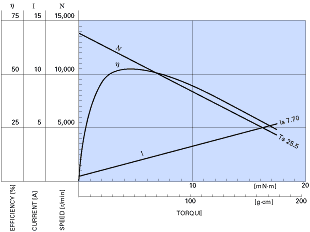

RS-360RH-2885 6.0V
chart

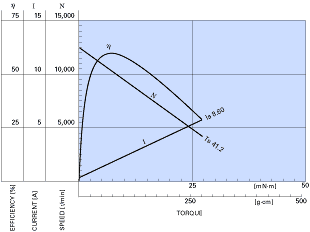

RS-360SH-2885 7.2V
chart
