RS-380SH
RS-380SH
Carbon-brush motors
OUTPUT:0.9W-40W (APPROX)
WEIGHT:71g (APPROX)
Typical Applications : Home Appliances> Vacuum Cleaner
Cordless Power Tools> Drill / Screwdriver

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mNm gcm W mNm gcm A
RS-380SH 4045 3 - 9 7.2 16200 0.50 14060 3.29 10.9 111 16.0 82.3 839 21.6
12300 12 - 30 24 8000 0.070 6540 0.31 6.27 63.9 4.29 34.3 350 1.40

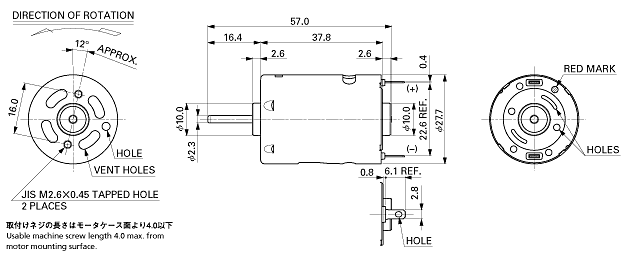

UNIT: MILLIMETERS

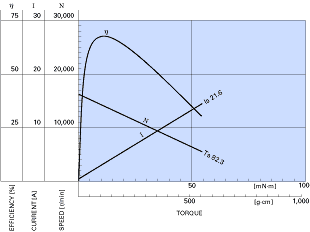

RS-380SH-4045 7.2V
chart

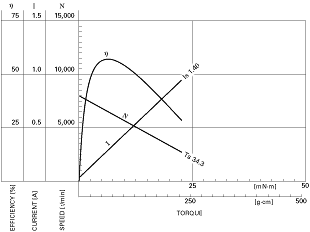

RS-380SH-12300 24.0V
chart
