RS-385SH
RS-385SH
Carbon-brush motors
OUTPUT:0.9W-35W (APPROX)
WEIGHT:70g (APPROX)
Typical Applications :
Office Automation Equipment> Printer / Copy Machine
Home Appliances> Hair Dryer

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mNm gcm W mNm gcm A
RS-385SH 2270(*1) 6 - 24 20 16400 0.18 14010 1.06 9.56 97.5 14.0 65.7 670 6.20
(*1) CCW shifted commutation (CCW+)

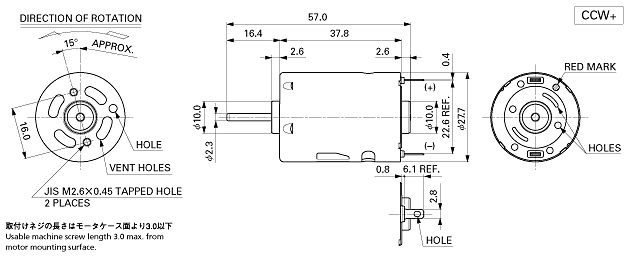

The terminal position against the tapped holes varies depending on CW+/NEUTRAL.
UNIT: MILLIMETERS

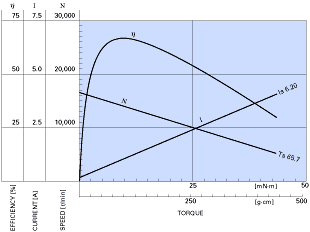

RS-385SH-2270 20.0V
chart
