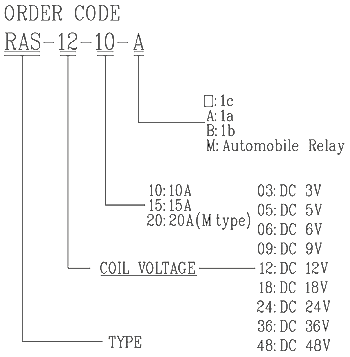

RAS series
Main Features:
  • UL, CUR & TUV safety approval.
  • Heavy current up to 15 amps available, and special 20amps for using on the car.
  • Epoxy seal type and flux free.
  • Satisfying all requirements for use in car and household electric appliances.
  • Coil Rating (at 20°C)
    NOMINAL VOLTAGE (VDC)
    COIL RESISTANCE () (+/- 10%)
    POWER CONSUMPT
    -ION (W)
    NOMINAL CURRENT (mA) (+/- 10%)
    PULL IN VOLTAGE (VDC)
    DROP OUT VOLTAGE (VDC)
    MAX. ALLOWABLE VOLTAGE (VDC)
    3V
    25
    0.36W
    120 mA
    75 % MAX.
    10 % MIN.
    130 %
    5V
    69
    72 mA
    6V
    100
    60 mA
    9V
    225
    40 mA
    12V
    400
    30 mA
    18V
    900
    20 mA
    24V
    1600
    15 mA
    36V
    3600
    10 mA
    48V
    4500
    0.51W
    10.6 mA
    12V (M type)
    225
    0.64W
    53.3 mA
    65 %
    8 %
    110 %
    Performance (at inital value)

    10A
    15A
    20A
    Contact Resistance
    50m Max. (initial value)
    Operate Time
    10msec Max.
    Release Time
    5msec Max.

    Dielectric Strength

    between coil & contact
    between contact

    AC 1500V (1min)
    AC 750V (1min)
    Insrlation Resistance
    100M Min.(DC 500V)
    Operating Ambient Temperature
    -30oC ~ +80oC
    Humidity
    35 to 85% RH
    Vibration Resistance
    10G (10~55Hz)(Dual amplitude : 1.5mm)
    Shock Resistance
    10G

    Life Expectancy

    Mechanically
    Electrically
    10,000,000 ops. Min. (1800 ops./h)
    100,000 ops. Min. (1200 ops./h)
    Weight
    9.5g (about)
      Contact Rating

    10A
    15A
    20A
    Rated Carrying Current
    AC 120V 10A
    AC 250V 7A
    DC 24V 10A
    AC 120V 15A
    AC 250V 10A
    DC 24V 15A
    DC 14V 20A
    DC 30V 15A
    AC 120V 15A
    Max. Allowable Current
    15A
    20A
    20A
    Max. Allowable Voltage
    AC 240V
    DC 110V
    Max. Current (continual)
    10A
    15A
    20A
    Contact Material
    Ag alloy
      Dimensions (Unit: mm)

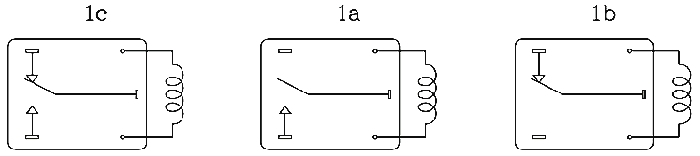

      Wiring Diagrams (Bottom View)

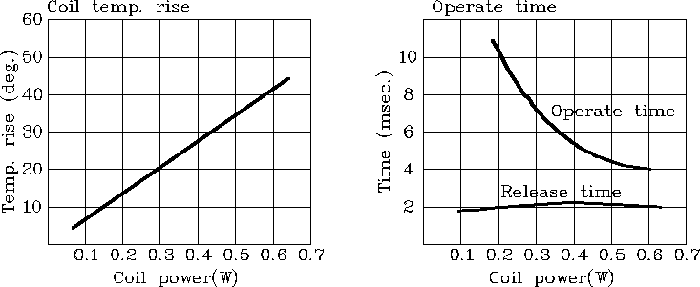

      Reference data
