For Alarm System |
US Type |
| Model |
Output
Rating (VA) |
Size of Transformer |
| A12-833 |
12VAC 833MA
(10VA) |
EI-41 |
| A12-167 |
12VAC 1.67A
(20VA) |
EI-48 |
| A16-121 |
16.5VAC
1.21A (20VA) |
| A24-833 |
24VAC 833MA
(25VA) |
| A12-208 |
12VAC 2.08A
(25VA) |
EI-57 |
| A16-151 |
16.5VAC 1.51A
(25VA) |
| A12-250 |
12VAC 2.5A
(30VA) |
| A12-292 |
12VAC 2.92A
(35VA) |
| A16-242 |
16VAC 2.42A
(40VA) |
| A12-333 |
12VAC 3.33A
(40VA) |
| A18-222 |
18VAC 2.22A
(40VA) |
| A24-166 |
24VAC 1.66A
(40VA) |
|
|
|

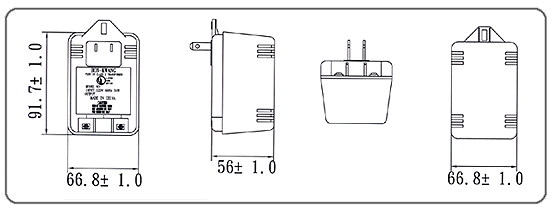

Case Dimension |
|

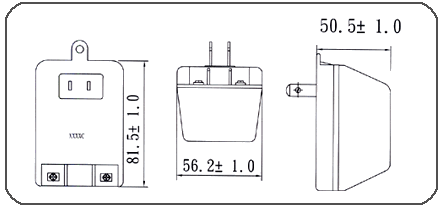

Type : EI-48(With mounting tab and screw terminal for
alarm system) |
|

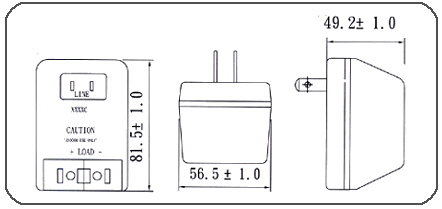

Type : EI-48(Output with screw terminal for alarm
system) |
|
Type : EI-57(With mounting tab and screw terminal for
alarm system) |
|
|
|
