Model No.:	DIP100
TV system:	PAL
Power Supply:	DC12V
Watts:	10W
Open Image Format:	MJPEG
Open Standards Environment:	TCP/IP,HTTP,FTP,SMTP,ARP,BOOTP,PPP
CPU:	Etrax 100,32bit RISC 100MIPS CPU
FLASH ROM;	4MB
RAN:	32MB
System Software:	Windows,Linux, Unix,OS/2,Macintosh
Browser Edition:	IE4.0 upwords, Netscape4.0
Max number of frame /S:	30(NTSC),25(PAL)
Max.Resolution:	704480(NTSC),704576(PAL)
Series port:	RS485
Alarm Input/Output:	1 input,1 output
Image Sensor:	1/3 inch CCD image sensor
CCD total image element:	573 (plane) *597(upright)
Scan system:	625 lines, 50 scenes / S
Synchronization system:	Inner-synchronization
Min illumination:	0.3Lux F1.2
Plane definition:	470 Lines (digital signal magnify process)
White balance:	ATW / AWC switchable 3200-10000K
Gain control:	AGC
S/N:	52dB(min) / 60dB(max) (auto gain-control close)
Electronic shutter:	1/50--1/100,000 S continuum
Auto iris:	VIDEO / DC / A.E.S
backlight compensation:	ON / OFF switchable
Mirror image function:	ON / OFF switchable
Digital amplify (2 times):	ON / OFF switchable
Operating Temperature:	5°C - 50°C
Constructions:	Die-cast aluminum
Weight:	0.4kg
Dimensions:	1419456(without lens)

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Model No.:	DIP-575	DIP-5705
Built-in standard camera choice:
Watts:	25W	18W
Image Format:	MJPEG	OPEN(AD.PELCO.SAMSUNG etc)
Communication Protocol:	TCP/IP,HTTP,FTP,SMTP
CPU:	Etrax100 32bit RISC 100MIPS
FLASH ROM:	4MB
RAM:	32MB
Systems environment:	Windows, Linux, Unix, OS/2, Macintosh
Browser Ver.:	at least IE4.0 or Navigator4.0
Max frames per second:	30(NTSC),25(PAL)
Max. Resolution:	704480(NTSC),704576(PAL)
Serial Interface:		RS485
Operating Temperature:	0°C~ 60°C(32°F ~ 140°F)
Presets:	64
Alarm pot:	1 channel input, 1 channel output
Power Supply:	AC24V
Speed:	Pan:0.5° ~ 200°/s, Tilt:0.5° ~ 90°/s
Travel Range:	Pan:0.5° ~ 360° continue, Tilt:0.5° ~ 90°
P/T Speed and:	auto
Lens Way:	auto
Constructions:	Main body: high intensity die-cast Aluminum,
Constructions:	Low Dome: PC
Weight:	3kg

Features

Adopted advanced AXIS chip technique,reliable working without drop-line;

Built-in network structure, 24 hours working without PC support on locale;

Built-in WEB server, surveillance only needs common browse, no need for; special software;

RJ45 network output port, plug and play;

Scene alarm port drive remote DVR recording;

Special before/after alarm auto-recording ability, be convenient for; checking the *pictures recording before and after alarm;

Built-in high speed intelligent P/T;

Other specifications as the same of DIP5705;

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



	Model No.: DIP-201	Model No.: DIP-202

Model No.:	DIP-201 / DIP-202
Protocols	TCP/IP, HTTP, FTP, SMTP, DDNS, DNS,DHCP, PPPoE
CPU	32Bit,RISC CPU
Flash	2M
RAM	16M
Image compression	JPEG,MOTION-JPEG,MPEG4
Web Browser	Microsoft IE,Netscape
Network Connection	10 Base-T (RJ-45)x1
Frame Rate	25(CIF),12.5(VGA)
Resolution	640x480,320x240,160x120
Alarm snapshots	40 frames
Save condition	I/O trigger,motion detection
Environment	Indoor only
Audio(optional)	G.711,G.726,G.723.1,G.729
Sensor	CMOS 640x480
P/T/Z control	RS485
Dimensions	100x140x42mm
Power consumption	12VDC/4W

Features

Remote surveillance monitoring via Internet or Intranet;

Buil-in camera high-sensitive microphone;

Can be viewed by up to 15 users at the same time;

The Multi-Image Display lets you view up to 4 cameras simultaneously;Built-in Pan/Tilt;

Extension for sensor and alarm;

Security:Administrator or User password protection;

Automatic intruder recording via FTP or e-mail;

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Model No.: DIP-30

View and configurate through Browser

640*480 VGA 15F/S 320*480 SVGA 30F/S

Single IP for upto 8 cameras

Supports DDNS

Allows 20 simultanous viewers

Up-grading through internet

Compact user friendly

Spec.:	Size: 237KB
Download Acrobat :

Model No.:		DIP-30

Image Sensor		1/4Inch VGACMOS Active-Pixel Digital
Video S/N Ratio		46dB
Lens		High Speed Colour
FOCUS		Manual
White Balance		Auto/Manual
Responsivity		1.9V/lux-sec(550nm)
Interface	LAN	RJ-45(CAT5)10/100Base-T
	WLAN	IEEE 802.11b(11Mbps)
PictureResolution(Pixel)		ppPoE,DHCP,HTTP,DDNS,SMTP,FTP,NTP
Frame Rate (JPEG)	Compression	320240,640480
	320240 640480	30fps 15fps
Password Protection		3-level passwords(admin/user/guest)
Multi-users		Up to20 Simultaneous users
Web Browser Plug-in		Active X Plug-in for IE5.0 or above, Java Applet plug-in for Netscape 6.0 or above
Email		Picture and status
NTP(Netork Time Protocol)		Calibrate time clock from an Internet Time Server
Configurate/View Through		Web Browser
Power Requirement		DC5V 1.0 Amp (Max.)
Dimensions (Without Antenna)	Main Body	4 0mm(H) X 55mm(W) X 105mm(D)
	Main Body affixed with Stand	70mm(H) x 70mm(W) x 105mm(D)

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

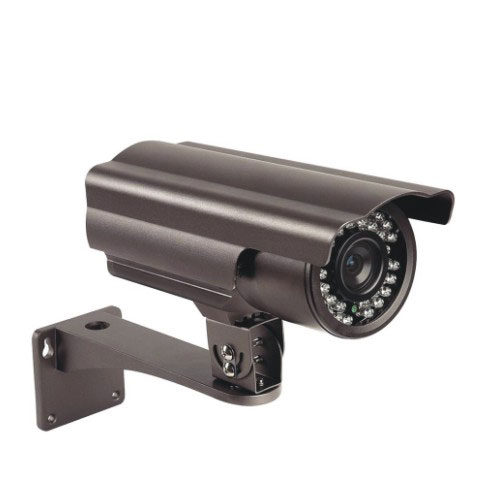

Model No.: DSW-3101PIR

IR &:IP Camera:⊄5mm 36IR LED;30m

IR Range:6mm CS Lense,Support D1

Image:Remote Control,Remote/Local Immediate Recording

Snapshot:Audio Eavesdropping

Video Meeting:MPEG-4 Compression
