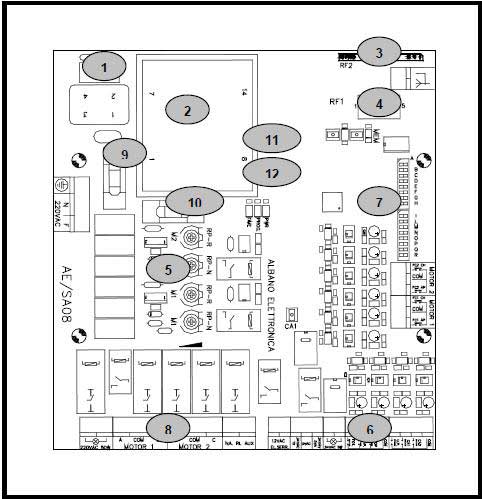

DIAGRAM OF THE SWITCHBOARD |
||||
![]() |
Model:CB-04 Sliding Gate Operators1 = Network filter protection2 = Power supply transformer 3 = Radio module 434MHz frequency 4 = Connector for inclusion of CB-RF quarzate radiofrequency board 5 = Adjustment of motor strength and deceleration 6 = Opto-insulated switchboard inputs with LED display 7 = Programming via dip-switch 8 = Relay output for control of motors 9 = F1 NEUTRAL safety fuses power voltage 6.3A/250v AC 10 = F2 PHASE safety fuses power voltage 6.3A/250v AC 11 = Auto-reinstating fuse power voltage 24v AC 11 = Auto-reinstating fuse power voltage 12v AC |
|||

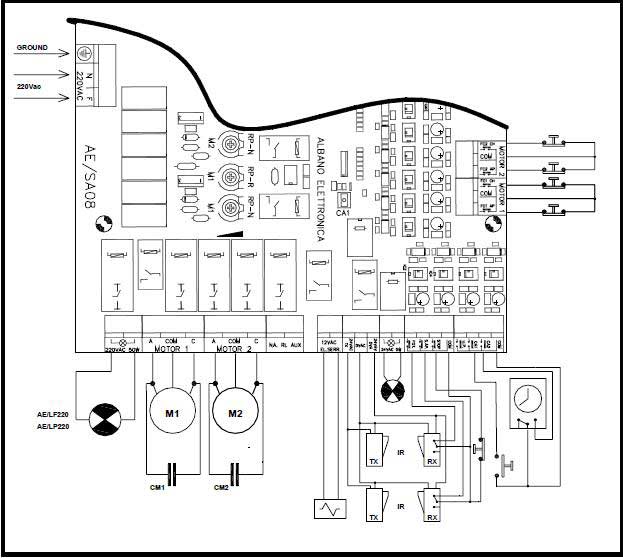

ELECTRICAL CONNECTIONS |
||||
![]() |
