• PCB Terminal Block 300-500
  • Click:

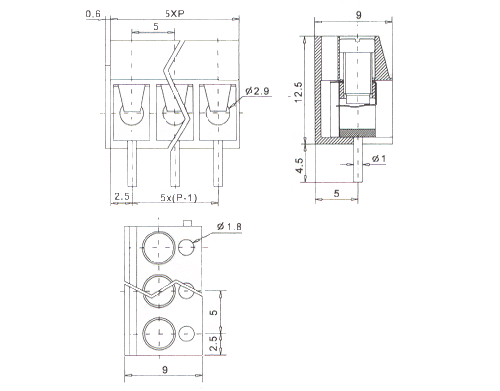

PCB Terminal Block


  • Voltage rating:250VAC
  • Current rating:16Amps/way max.
  • Insulation resistance:5000MΩ/1000V
  • Wire range:14-22AWG
  • Operation temperature:-33to+120
  • Torque:4kg-cm/M3Satety apporval:<img src="/templets/images/dswbrand/r.gif">
  • cart
  • PCB Terminal Block
Contact:Brass(CuZn) (metal housing) Terminal screw:Steel Galvanized and chormatized of Nickel plated or Tin plated (Standard option) Wire guard:Brass/Stainless steel Suface of solder tail:Tin plated Insulator body:Polyamide(Glass filled) (housing) (UL94V-0)
