• High Speed Dome HD-5722
  • Click:

High Speed Dome

  • Privacy Masking Zone:8
  • Cruise:8 groups,20 pieces motion every group
  • Swing:8
  • Preset Call Back:Max speed up to 400°/s
  • Manual Control:0.1°/s~100°/s
  • Swing Scan:15°/s~60°/s
  • Preset Point Quantity:127
  • Cable Connection:RS485 auti-surge adoptor
  • Baud Rate:9600,4800,2400 hps selectable
  • Protocol:Pelco-P,Pelco-D,
  • Working Voltage:DC12V or AC24V
  • Power Consumption:30W

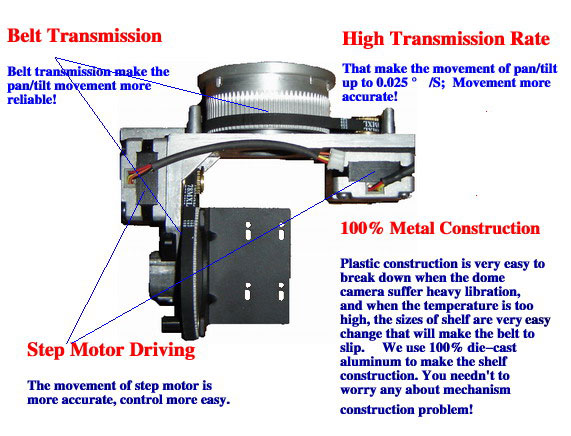

  • Construction:Die-cast aluminum body
  • cart

Main Function

OSD Menu Using the OSD menu, Preset, Group, functions can be configured for each application
Schedule Function With schedule function, high speed dome camera can auto working at appointed time.
Privacy Zone Masking 8 pieces privacy zone masking to protect privacy
Trace Learning 4 channels trace learning , one minutes every channel
Image frozen function When high speed dome camerae patrol, the movement iamge can be ignored, one show the preset point image, effectively save HDD space;
  HD-5722YDF HD-5722YF HD-5722CDF HD-5722CF HD-5727LDF HD-5718SF HD-5718SDF
  22 times Day/Night 22 times Color 22 times Day/Night 22 times Color 27 times Day/Night 18 times Color 18 times Day/Night
Image Sensor 1/4" Super HAD CCD 1/4" IT EXVIEW CCD
Resolution 480TVL 480TVL 480TVL 420TVL 480TVL 480TVL 480TVL
Zoom 22 times optical zoom, 16 times digital zoom 27 times optical zoom;10 times digital zoom 18 times optical zoom; 12 time digital zoom
Iris Auto
Focus Auto/Manual
Focal Length F=3.9--85.8mm F=3.25-88mm F=4.1--73.8mm
White Balance On/Off
