| Mechnical Buzzer | Piezo Buzzer |  |
|
 |
 |
| Model No | KPMB-2315L | KPMB-2303L | KPMB-2306L | KPMB-2309L | KPMB-2312L | KPMB-2324L |
| Rated Volt. | 1.5VDC | 3VDC | 6VDC | 9VDC | 12VDC | 24VDC |
| Operating Volt. | 1.3-2VDC | 2-4VDC | 4-8VDC | 6-12VDC | 9-15VDC | 15-27VDC |
| Max. Rate. Curr. | 20mA at 1.5VDC | 25mA at 3VDC | 25mA at 6VDC | 25mA at 9VDC | 25mA at 12VDC | 25mA at 24VDC |
| Min. Sound Pressure Level | 75dB at 1.5VDC/20cm | 75dB at 3VDC/20cm | 75dB at 6VDC/20cm | 75dB at 9VDC/20cm | 75dB at 12VDC/20cm | 75dB at 24VDC/20cm |
| Reso. Freq. | 400 100Hz |
400100Hz |
400100Hz |
400100Hz |
400100Hz |
400100Hz |
| Oper. Temp. | -20-+60C | -20-+60C | -20-+60C | -20-+60C | -20-+60C | -20-+60C |
| Weight | 10g | 10g | 10g | 10g | 10g | 10g |
|
 |
 |
| Model No | KPMB-2203P | KPMB-2206P | KPMB-2209P | KPMB-2212P | KPMB-2215P | KPMB-2224P |
| Rated Volt. | 3VDC | 6VDC | 9VDC | 12VDC | 1.5VDC | 24VDC |
| Operating Volt. | 2-4VDC | 4-8VDC | 6-12VDC | 9-15VDC | 1-2VDC | 15-27VDC |
| Max. Rate. Curr. | 25mA at 3VDC | 25mA at 6VDC | 25mA at 9VDC | 25mA at 12VDC | 20mA at 1.5VDC | 25mA at 24VDC |
| Min. Sound Pressure Level | 70dB at 3VDC/20cm | 75dB at 6VDC/20cm | 75dB at 9VDC/20cm | 80dB at 12VDC/20cm | 70dB at 1.5VDC/20cm | 80dB at 24VDC/20cm |
| Reso. Freq. | 400100Hz |
400100Hz |
400100Hz |
400100Hz |
400100Hz |
400100Hz |
| Oper. Temp. | -20-+60C | -20-+60C | -20-+60C | -20-+60C | -20-+60C | -20-+60C |
| Weight | 10g | 10g | 10g | 10g | 10g | 10g |
|
 |
 |
| Model No | KPMB-2303P | KPMB-2306P | KPMB-2309P | KPMB-2312P | KPMB-2315P | KPMB-2324P |
| Rated Volt. | 3VDC | 6VDC | 9VDC | 12VDC | 1.5VDC | 24VDC |
| Operating Volt. | 2-5VDC | 4-8VDC | 6-12VDC | 9-15VDC | 1-2VDC | 15-27VDC |
| Max. Rate. Curr. | 25mA at 3VDC | 25mA at 6VDC | 25mA at 9VDC | 25mA at 12VDC | 25mA at 1.5VDC | 25mA at 24VDC |
| Min. Sound Pressure Level | 75dB at 3VDC/20cm | 75dB at 6VDC/20cm | 75dB at 9VDC/20cm | 75dB at 12VDC/20cm | 70dB at 1.5VDC/20cm | 75dB at 24VDC/20cm |
| Reso. Freq. | 400100Hz |
400100Hz |
400100Hz |
400100Hz |
400100Hz |
400100Hz |
| Oper. Temp. | -20-+60C | -20-+60C | -20-+60C | -20-+60C | -20-+60C | -20-+60C |
| Weight | 10g | 10g | 10g | 10g | 10g | 10g |
|
 |
 |
| Model No | Rated Volt. | Operating Volt. | Max. Rate. Curr. | Min. Sound Pressure Level | Reso. Freq. | Oper. Temp. | Weight |

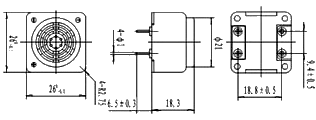

| KPMB-2612P4 | 12VDC | 9-15VDC | 55mA at 12VDC | 80dB at 12VDC/20cm | 400100Hz |
-20-+60C | 10g |
