Model No.:
ESP23PA4.8 |
|
Mylar Speaker
Size DxH (mm):23X4.8
Rated Impedance(ohm):8+/-15%
Rated Power(W):0.25
Max.Power(W):0.3
Resonant Frequency(Hz):600+/-20%
Frequency Range (Hz):Fo -7000
Sound Pressure Level(dB):82+/-3
Operating Temperature:-20~+55
Magnet Size (mm):9.5X1.5
Core Material (mylar):Transparent Ra
|
|
|
Model No.:
ESP27PA8 |
|
Mylar Speaker
Size DxH (mm):27X8
Rated Impedance(ohm):8+/-15%
Rated Power(W):0.25
Max.Power(W):0.5
Resonant Frequency (Hz):350+/-20%
Frequency Range (Hz):Fo -5000
Sound Pressure Level(dB):78+/-3
Operating Temperature:-20 ~ +55
Magnet Size (mm):12.5X4
Core Material (mylar):Transparent Ra
|
|
|
Model No.:
ESP27PA5 |
|
Mylar Speaker
Size DxH (mm):27X5
Rated Impedance(ohm):8+/-15%
Rated Power(W):0.25
Max.Power(W):0.5
Resonant Frequency (Hz):750 20%
Frequency Range (Hz):Fo -7000
Sound Pressure Level(dB):84+/-3
Operating Temperature:-20 ~ +55
Magnet Size (mm):12.5X1.5
Core Material (mylar):Transparent
|
|
|
Model No.:
ESP23PA5 |
|
Mylar Speaker
Size DxH (mm):23X5
Rated Impedance(ohm):8+/-15%
Rated Power(W):0.25
Max.Power(W):0.5
Resonant Frequency(Hz):700+/-20%
Frequency Range (Hz):Fo -5000
Sound Pressure Level(dB):81+/-3
Operating Temperature:-20 ~ +55
Magnet Size (mm):9.5X1.5
Core Material (mylar):Transparent Ra
|
|
|
Model No.:
ESP29PA5 |
|
Mylar Speaker
Size DxH (mm):29X5
Rated Impedance(ohm):8+/-15%
Rated Power (W):0.25
Max.Power (W):0.5
Resonant Frequency(Hz):800+/-20%
Frequency Range(Hz):Fo -6000
Sound Pressure Level(dB):84+/-3
Operating Temperature:-20 ~ +55
Magnet Size(mm):12.5X1.5
Core Material (mylar):Transparent
|
|
|
Model No.:
ESP40PA6 |
|
Mylar Speaker
Size DxH (mm):40X6
Rated Impedance(ohm):8+/-15%
Rated Power (W):0.25
Max.Power (W):0.5
Resonant Frequency(Hz):700+/-20%
Frequency Range(Hz):Fo -3500
Sound Pressure Level(dB):86+/-3
Operating Temperature:-20 ~ +55
Magnet Size(mm):9.5X1.5
Core Material(mylar):Transparent
|
|
|
Model No.:
ESP30PA4 |
|
Mylar Speaker
Size DxH (mm):30X4
Rated Impedance(ohm):8+/-15%
Rated Power (W):0.25
Max.Power (W):0.3
Resonant Frequency(Hz):700+/-20%
Frequency Range(Hz):Fo -6000
Sound Pressure Level(dB):88+/- 3
Operating Temperature:-20 ~ +55
Magnet Size(mm):9.5X1.5
Core Material(mylar):Transparent
|
|
|
Model No.:
ESP36PA4.3 |
|
Mylar Speaker
Size DxH (mm):36X4.3
Rated Impedance(ohm):8+/-15%
Rated Power (W):0.25
Max.Power (W):0.3
Resonant Frequency (Hz):500+/-20%
Frequency Range(Hz):Fo -7000
Sound Pressure Level(dB):89+/-3
Operating Temperature:-20 ~ +55
Magnet Size(mm):12.5X1.5
Core Material(mylar):Transparent
|
|
|
Model No.:

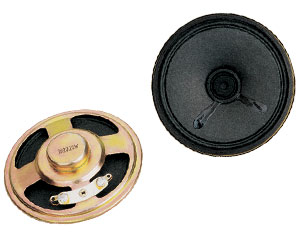

ESP50PA7 |
|
Mylar Speaker
Size DxH (mm):50X7
Rated Impedance(ohm):8+/-15%
Rated Power (W):0.25
Max.Power (W):0.5
Resonant Frequency (Hz):400+/-20%
Frequency Range(Hz):Fo -3000
Sound Pressure Level(dB):87+/-3
Operating Temperature:-20 ~ +55
Magnet Size(mm):12.5X1.5
Core Material:(mylar)Black
Fram
|
|
|
Model No.:
ESP29PA5.5 |
|
Mylar Speaker
Size DxH (mm):29X5.5
Rated Impedance(ohm):8+/-15%
Rated Power (W):0.25
Max.Power (W):0.5
Resonant Frequency(Hz):600+/-20%
Frequency Range(Hz):Fo -5500
Sound Pressure Level(dB):82+/-3
Operating Temperature:-20 ~ +55
Magnet Size(mm):9.5X1.5
Core Material:(mylar)Transparent
|
|
|
Model No.:
ESP27PF5 |
|
Mylar Speaker
Size DxH (mm):27X5
Rated Impedance(ohm):8+/-15%
Rated Power (W):0.25
Max.Power (W):0.5
Resonant Frequency(Hz):800+/-20%
Frequency Range(Hz):Fo -6000
Sound Pressure Level(dB):81+/-3
Operating Temperature:-20 ~ +55
Magnet Size(mm):16X1.9
Core Material:(mylar)Transparent
F
|
|
|
Model No.:
ESP34PF8.5 |
|
Mylar Speaker
Size DxH (mm):34X8.5
Rated Impedance(ohm):8+/-15%
Rated Power (W):0.25
Max.Power (W):0.5
Resonant Frequency(Hz):700+/-20%
Frequency Range(Hz):Fo -5000
Sound Pressure Level(dB):85+/-3
Operating Temperature:-20~+55
Magnet Size(mm):21X3
Core Material:(mylar)Transparent Radial
|
|
|
|
|
|
