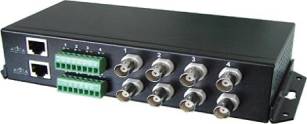

Product: Four/Eight-channel passive video Transceiver Model: AVT104p/AVT108P
Description
The model AVT104P/AVT108P video transceiver is passive (non-amplified) device that allows the transmission of real-time monochrome (B/W) or color video via Unshielded Twisted-Pair(UTP) cable. Baseband (composite) signals of any type are supported.

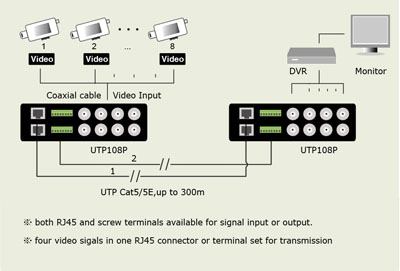

The AVT104P/AVT108P can be used as both transmitter and receiver. As transmitter, the unit receives four / eight channels video from cameras as well as sends out four/eight channels video signals ,While as receiver, the unit receives four/eight channels video signal from transmitters as will as provides four/eight BNC video outputs. With working with passive transceivers (e.g.UTP101P UTP104P) and active transmitters (e.g.UTP101AT) UTP104P allow signals transmission up to 300m and 600m respectively.
The unparalleled interference rejection and low emissions of the UTP104P/UTP108P allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant.
Features
Four/eight passive transceiver channels in one product
Transmission distance of up to 300m working with passive
transceivers(e.g. AVT104P,AVT108P)
Transmission distance of up to 600m working with active
transmitter(e.g.AVT101AT).
Supports all bandbase signals including PAL, NTSC, SECAM
Transmitting signals via UTP cat5/5e cable
Real-time transmission
No power required
Both RJ45 and screw terminals available for UTP cable
connections
Built-in transient protection
Exceptional interference rejection
Certifications
CE FCC
Specification
Items |
AVT104P |
AVT108P |
|
Video |
Supporting Video Mode |
All Baseband Signals, |
|
Transmitting Band |
5MHz Maximum |
||
Maximal Transmission distance |
300meters(working with AVT101P) |
||
Interference Rejection |
>60dB |
||
Attenuation |
1.5dB Maximum |
||
Connection |
Video Input/Output Connectors |
4 Female BNC |
8 Female BNC |
esistance |
75 |
||
Connectors for transmissions |
RJ45 and screw |
2?RJ45 and screw terminal sets |
|
Resistance |
50 |
||
Protections |
Video Input Protection |
2KV(common mode),10/700us |
|
Video Output Protection |
2KV(different mode),10/700us |
||
Stability |
MTBF |
>50,000h |
|
Physical |
Dimensions (LWH) |
180 85 32mm |
180 85 44mm |
Housing Material |
Metal |
||
he Color of Unit |
Black |
||
Weight |
450g |
565g |
|
Environmental |
Operating Temperature |
-20~70 |
|
Relative Humidity(non-condensing) |
0~95% |
||
Storage Temperature |
-40~150 |
||
Casing |
casing volume(LWH) |
275 190 70mm |
