DVR2104T/DVR2104A/DVR2104V

Standalone DVR

Standalone DVR,Standalone Digital Video Recorder

  • The Third Generation MJPEG compression
  • Available in NTSC PAL system
  • Real-time display:120fps(NTSC)/100fps(PAL)
  • Selectable 24hrs. continuous, motion detection sensor triggered recording mode
  • Selectable motion detection area sensitivity adjustment for individual camera
  • PTZ control via built-in RS485 port
  • PC playback backup via built-in USB 2.0 port
  • With auto switch display function
  • With video loss alarm function
  • With power recovery auto-record function
  • One fixed HDD rack supports up to 200GB IDE HDDx1
  • IR remote control included
  • Audio I/O(optional)
  • VGA video output(optional)
  • Network(22134L only):built-in web sever, remote control DVR via IE
  • cart
Description:
Model
DVR2104T
DVR2104V
DVR2104A
DVR2104AV
DVR2104L
Compression Format
Motion JPEG(12~20K Bytes per frame)

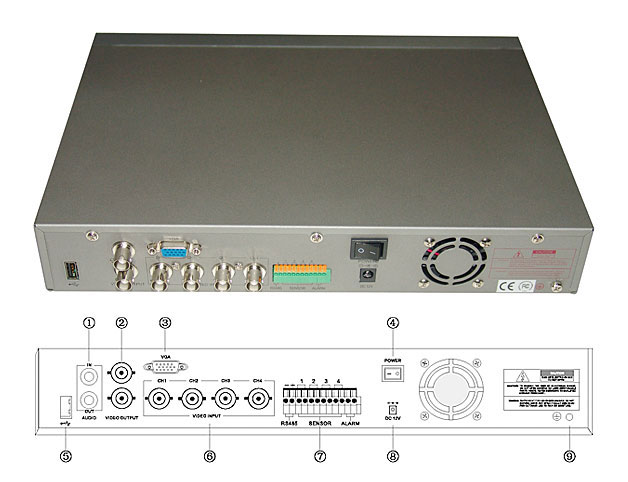

Video Input / Output
BNC 4-channel inputs / 2-channel outputs (Composite)
Audio Input / Output
N/A
RCA 1-channel I/O
N/A
Display Mode
Quad; full screen of single picture; auto switch
Display Frame Rate
NTSC: 120fps / 4x30fps    PAL:   100 fps / 4x25fps
Recording Frame Rate
NTSC: max. 30fps / 4x7.5    PAL: max. 25fps / 4x6.25fps
Display Resolution
NTSC: 720x480    PAL: 720x576
Recording Resolution
NTSC: 320x112, 640x224    PAL: 320x136, 640x272
HDD Rack
Fixed HDD rack supports up to 200GB IDE HDD
Recording Time
NTSC: 155 hours with 120GB HDD @ 15fps
PAL:    194 hours with 120GB HDD @ 12fps
Recording Mode
Selectable 24 hrs. Continuous; motion detection; sensor triggered; auto record
Sensors & Alarm

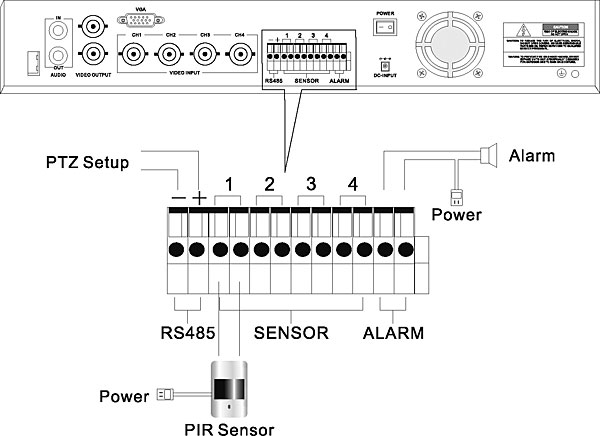

Supports 4 sensor inputs(NO or NC), 1 relay output (10 Pin DIP Switch)
USB Interface
USB2.0
VGA
N/A
Available
N/A
Available
Optional
P/T/Z
RS485 interface (PELCO-D, PELCO-P, SAMSUNG, BO1, NEON, CTNCOM)
Network
N/A
10/100 Mbps Ethernet
Remote Controller
Included to control all functions on front panel
Power Adapter
DC 12V, 5A
Dimensions (DXWXH)
315X224X52 mm
