• PCB Terminal Block 127-500 / 127-508
  • Click:

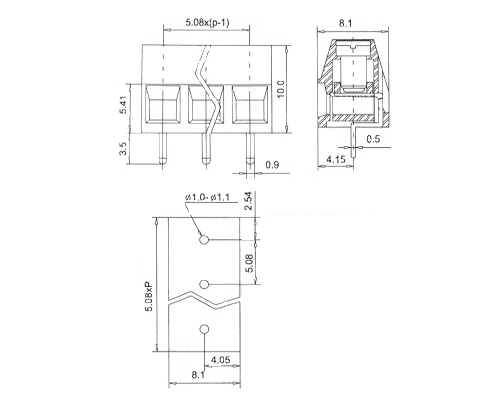

127-500 / 127-508

PCB Terminal Block

5.00/10.00mm 5.08/10.16mm

  • Voltage rating:250VAC
  • Current rating:10Amps/way max.
  • Insulation resistance:5000M/1000V
  • Wire range:16-26AWG
  • Operation temperature:-33 to+120
  • Torque:4kg-cm/M2.5
  • cart
Description:
  • PCB Terminal Block
Contact :Steel Stamping Zinc Die Casting or Brass Machined ( Option ) (metal housing) Terminal screw:Steel Galvanized and chormatized of Nickel plated or Tin plated (Standard option) Suface Pin:Brass With Tin Plated Surface body :Tin Plated Insulator body:Polyamide(Glass filled) (housing) (UL94V-0)
