| Model No.:
MCS-204R |
 |
Wireless Accessories

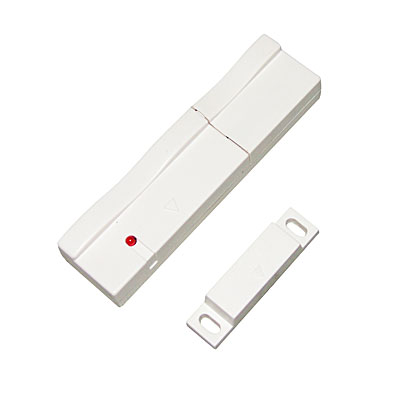

Wireless door magnetism MCS-204R
1.it transmit the signal of the door/window's opening or closing to the main;
2.Tamper design: Under the condition that the triangle on emitter aims at triangle on magnetism, when the battery lid is removed, it will emit signal to the main.
|
  |
|
| Model No.:
MCS-602 |
 |
Wireless Accessories
Operating Voltage:12V DC(23 battery used)
Operating Current:standby current:<8uA(23A battery used) alarm current:<10mA(23A battery used)
Magnetic Control Distance:<=17mm
Transmit Frequency:868MHz
Operaing Temperature:-10oC~50oC
Transmit Range:>100m(in open space)
Diment
|
|
|
|
| Model No.:
MCS-203R (Wireless) |
 |
Wireless Accessories
Dimensions:3 3/16"*7/8"*15/16" (81mm*22mm*23.5mm)
Weight:1.2 oz. (34g), excluding battery
Battery Weight:0.45 oz. (13g)
Frequency:433.5
Transmitter's ID Code:24-bit digital word, over 16 million combinations, pulse width modulation
Overall Message Length
|
|
|
|
| Model No.:
HBA-107C |
 |
Wireless Accessories
Supply battery:3*1.5V*5#
Static current:<=60uA
Alarm current:<=7mA
Launch frequency:315MHZ?MHZ
Detection angle:horizontal 110(vertical 45)
Detection distance:8-12m (m)
Wireless data transmission distance:>=500m beeline distance
|
|
|
|
| Model No.:
HBA-107A |
 |
Wireless Accessories
Power supply:3V Non-Hg high alkaline battery. 2500mAH,at least continues working for two years.
Working current:static<20μA; alarm<15 Ma
Wireless parameter:frequency 315MHz,Transmitting distance >150 m (wide area without interfere) KM-2000 communication mode.
Working mode:power s
|
|
|
|
| Model No.:
HBA-952 |
 |
Wireless Accessories
Dry battery model NO.:23A. 12V.
Working condition:Indoor, temperature －10～－50oC relative humidity <95%
Power consumption:Standby 0.01 W, alarm 0.09 W
Weight:60g excluding battery.
Dimension:9?.5?.2 cm.
|
|
|
|
| Model No.:
HBA-10048WL |
 |
Wireless Accessories
One signal transfer, one auto-rechargeable power supply(UPS)to support 48 hours.
Signal transfer distance within 100meter.
|
|
|
|
| Model No.:
HBA-107B |
 |
Wireless Accessories
Power supply:3V high performance Li-Ion battery. 1300mAH, at least continues working for 2-3 years.
Working current:static<20μA; alarm<15 Ma
Wireless parameter:frequency 315MHz, Transmitting distance >150 m (wide area without interfere) KM-2000 communication mode.
Working mode:p
|
|
|
|
| Model No.:
MCS-601 |
 |
Wireless Accessories
Alarm controlling distance between wireless transmitter unit and magnetic unit:<=1.5cm.
Working voltage:12V
Working current:<=10mA
Static current:<=5μA
Working frequency:433.92 MHZ?KHZ/315 MHZ
Emitting frequency:>10mw
Frequency tolerance:?.2MHz
|
|
|
|
| Model No.:
MCS-205R
|
 |
Wireless Accessories
Model MCS-205R Operating voltage 4.5V
Power consumption quiescent
|
|
|
|
|
|
