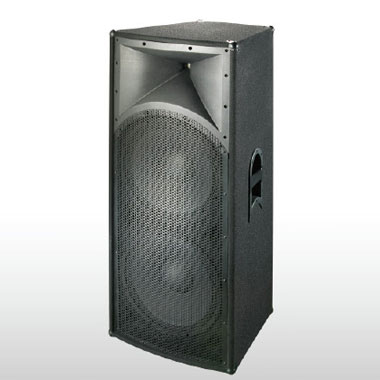

Model No.:
ESS-215 |
|
Wooden Box
2×15"Woofer with Wooden Box
Magnet:50 oz
VoiceCoil:2.5"ASV
Frequency Response:45HZ-18KHZ(-10dB)
Sensitivity:96dB(+/-2dB)
Impedance:8 Ohm
RMS Power:350 W
10"×18"Horn 44mm Ti.Diap.Driver
|
|
|

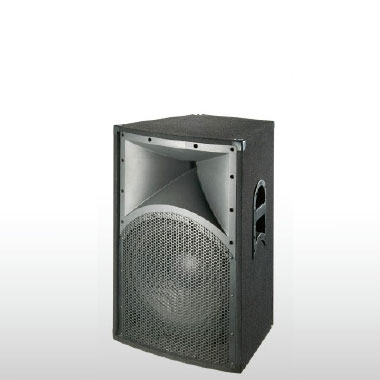

Model No.:
ESS-15 |
|
Wooden Box
15"Woofer with Wooden Box
Magnet:50 oz
VoiceCoil:2.5"ASV
Frequency Response:45HZ-18KHZ(-10dB)
Sensitivity:96dB(+/-2dB)
Impedance:8 Ohm
RMS Power:180 W
10"×18"Horn 44mm Ti.Diap.Driver
|
|
|

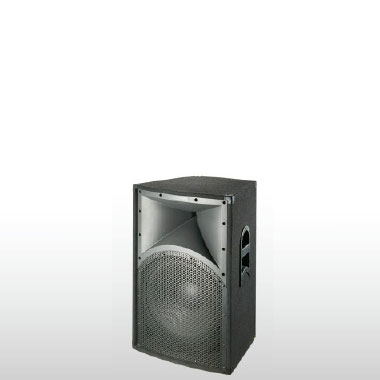

Model No.:
ESS-1202 |
|
Wooden Box
12"Woofer with Wooden Box
Magnet:40 oz
VoiceCoil:2"ASV
Frequency Response:50HZ-18KHZ(-10dB)
Sensitivity:94dB(+/-2dB)
Impedance:8 Ohm
RMS Power:120 W
10"×18"Horn 34mm Ti.Diap.Driver
|
|
|

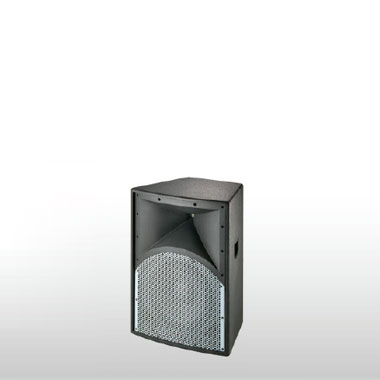

Model No.:
ESS-3602 |
|
Wooden Box
12"Woofer with Wooden Box
Magnet:50 oz
VoiceCoil:2.5"KSV
Frequency Response:50HZ-18KHZ(-10dB)
Sensitivity:96dB(+/-2dB)
Impedance:8 Ohm
RMS Power:180 W
10"×18"Horn 34mm Ti.Diap.Driver
|
|
|

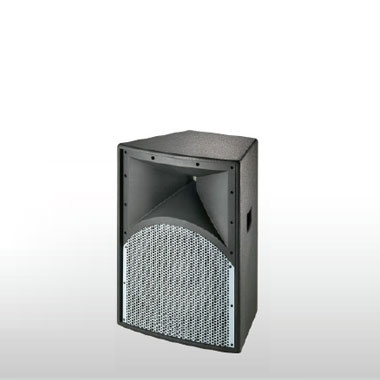

Model No.:
ESS-3615 |
|
Wooden Box
15"Woofer with Wooden Box
Magnet:60 oz
VoiceCoil:3"KSV
Frequency Response:45HZ-18KHZ(-10dB)
Sensitivity:98dB(+/-2dB)
Impedance:8 Ohm
RMS Power:200 W
10"×18"Horn 44mm Ti.Diap.Driver
|
|
|

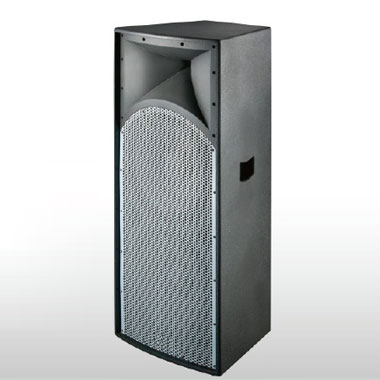

Model No.:
ESS-36215 |
|
Wooden Box
2×15"Woofer with Wooden Box
Magnet:60 oz
VoiceCoil:3"KSV
Frequency Response:45HZ-18KHZ(-10dB)
Sensitivity:98dB(+/-2dB)
Impedance:8 Ohm
RMS Power:400 W
10"×18"Horn 44mm Ti.Diap.Driver
|
|
|

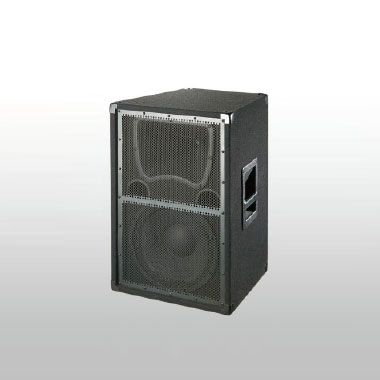

Model No.:
ESS-2712 |
|
Wooden Box
12"Woofer with Wooden Box
Magnet:50 oz
VoiceCoil:2.5"KSV
Frequency Response:45HZ-18KHZ(-10dB)
Sensitivity:96dB(+/-2dB)
Impedance:8 Ohm
RMS Power:180 W
9"×11.5"Horn 34mm Ti.Diap.Driver
|
|
|
Model No.:

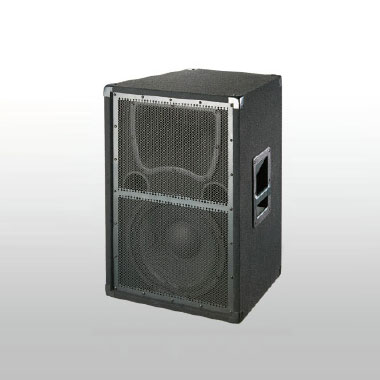

ESS-3712 |
|
Wooden Box
15"Woofer with Wooden Box
Magnet:60 oz
VoiceCoil:3"KSV
Frequency Response:45HZ-18KHZ(-10dB)
Sensitivity:98dB(+/-2dB)
Impedance:8 Ohm
RMS Power:200 W
9"×11.5"Horn 44mm Ti.Diap.Driver
|
|
|

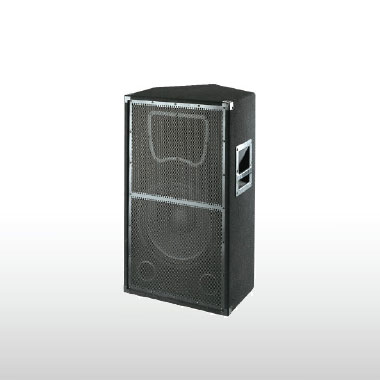

Model No.:
ESS-3715M |
|
Wooden Box
15"Woofer with Wooden Box
Magnet:60 oz
VoiceCoil:3"KSV
Frequency Response:45HZ-18KHZ(-10dB)
Sensitivity:98dB(+/-2dB)
Impedance:8 Ohm
RMS Power:200 W
9"×11.5"Horn 44mm Ti.Diap.Driver
|
|
|

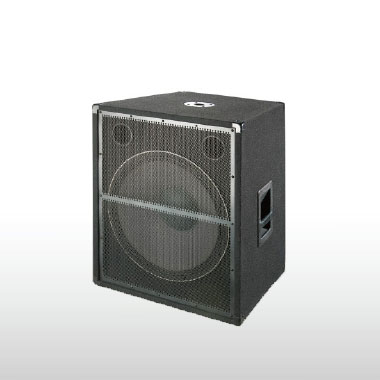

Model No.:
ESS-3718 |
|
Wooden Box
18"Woofer with Wooden Box
Magnet:100 oz
VoiceCoil:4"KSV
Frequency Response:38HZ-3.5KHZ(-10dB)
Sensitivity:98dB(+/-2dB)
Impedance:8 Ohm
RMS Power:400 W
|
|
|

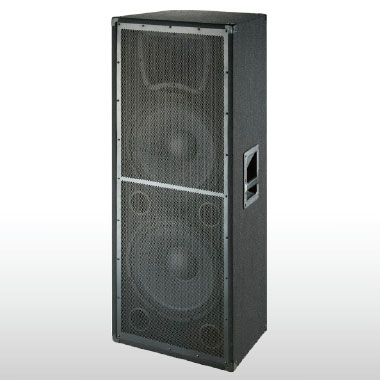

Model No.:
ESS-37215 |
|
Wooden Box
2×15"Woofer with Wooden Box
Magnet:60 oz
VoiceCoil:3"KSV
Frequency Response:45HZ-20KHZ(-10dB)
Sensitivity:98dB(+/-2dB)
Impedance:8 Ohm
RMS Power:400 W
9"×11.5"Horn 34mm Ti.Diap.Driver
|
|
|

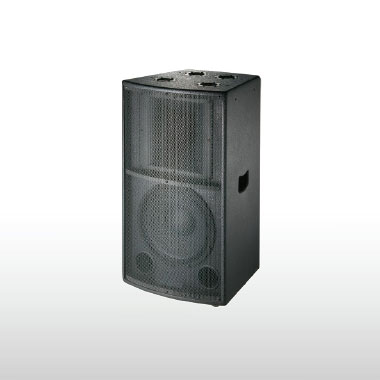

Model No.:
ESS-3912 |
|
Wooden Box
12"Woofer with Wooden Box
Magnet:50 oz
VoiceCoil:2.5"KSV
Frequency Response:50HZ-20KHZ(-10dB)
Sensitivity:97dB(+/-2dB)
Impedance:8 Ohm
RMS Power:180 W
11.5"×11.5"Horn 44mm Ti.Diap.Driver
|
|
|
|
|
|
