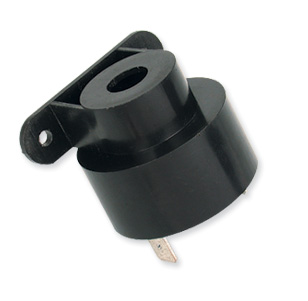

| Model No.:
EPA-36 |
 |
Piezo Alarm(Backup)
Rated Voltage:9 VDC
Operating Voltage:8 To 48VDC
Max. Rated Current:3mA at 9VDC
Min.SPL:83 dB at 9VDC/30cm
Resonant Frequency:200 +/-15 HZ
Tone Nature:AM Tone or Continuous
Housing:ABS Plastic Black
Operat. Temperature:20 -60
Store Temperature:30 To 70
Weight:28 g
|
  |
|

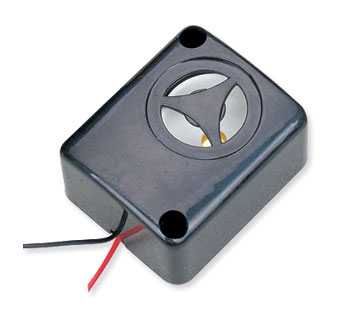

| Model No.:
EPA-47S
|
 |
Piezo Alarm
Rated Voltage:12 VDC
Operating Voltage:6 To 15VDC
Max. Rated Current:80 mA at 12VDC
Min.SPL:110 dB at 12VDC/30cm
Resonant Frequency:1.5 To 3.5 KHz
Tone Nature:Warble
Housing:Black ABS Plastic
Operat. Temperature:20 -60
Store Temperature:30 To 70
Weight:35 g
Re
|
|
|
|
| Model No.:
EPA-52 |
 |
Piezo Alarm (Backup)
Rated Voltage:12 VDC
Operating Voltage:8 To 15VDC
Max. Rated Current:280 mA at 12VDC
Min.SPL:105 dB at 12VDC/1n
Resonant Frequency:1.5 To 3.5 KHz
Tone Nature:Warble & Continuous
Housing:ABS Plastic
Operat. Temperature:20 To 60
Store Temperature:30 To 70
Weight
|
|
|
|
| Model No.:
EPA-60S
|
 |
Piezo Alarm
Rated Voltage:12 VDC
Operating Voltage:6 To 15VDC
Max. Rated Current:280 mA at 12VDC
Min.SPL:105 dB at 12VDC/1n
Resonant Frequency:2.8 +/-0.5Khz
Tone Nature:Warble
Housing:White ABS Plastic
Operat. Temperature:20 T0 60 F
Store Temperature:30 To 70
Weight:70g
R
|
|
|
|
| Model No.:
EPA-45U
|
 |
Piezo Alarm (Backup)
Rated Voltage:12 VDC
Operating Voltage:6 To 15VDC
Max. Rated Current:210 mA at 12VDC
Min.SPL:105 dB at 12VDC/1m
Resonant Frequency:1.5 To 3.5 KHz
Tone Nature:Warble & Hi-Low
Housing:Black ABS Plastic
Operat. Temperature:20 T0 65 F
Store Temperature:30 To 70
We
|
|
|
|
| Model No.:
EPA-62U |
 |
Piezo Alarm
Rated Voltage:12 VDC
Operating Voltage:6 To 15VDC
Max. Rated Current:250 mA at 12VDC
Min.SPL:105 dB at 12VDC/1m
Resonant Frequency:1.5 To 3.5 KHz
Tone Nature:Warble & Hi-Low
Housing:ABS Plastic Black
Operat. Temperature:20 T0 65 F
Store Temperature:30 To 70
We
|
|
|
|
| Model No.:
EPA-55S |
 |
Piezo Alarm
Rated Voltage:12 VDC
Operating Voltage:6 To 15VDC
Max. Rated Current:Less 300mA at 12VDC
Min.SPL:105 dB at 12VDC/1n
Resonant Frequency:1.5 To 4 KHz
Tone Nature:Warble
Housing:Steel Tab Mounted
Operat. Temperature:20 T0 60 F
Store Temperature:30 To 70
Weight:110g
|
|
|
|

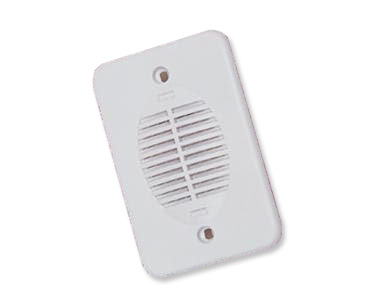

| Model No.:
EPA-12 |
 |
Piezo Alarm
Rated Voltage:12 VDC
Operating Voltage:12 To 24VDC
Max. Rated Current:70 To 180 mA at 12Vdc or 24 Vdc
Min.SPL:80 To 88 dB at 12 or 24VDC/1m
Resonant Frequency:Single or Dual Chime
Tone Nature:Single or Dual Chime
Housing:White ABS Plastic
Operat. Temperature:20 T0 65 C
|
|
|
|

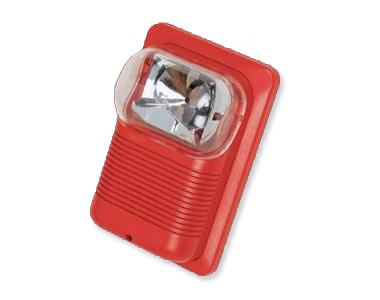

| Model No.:
EFA-183 |
 |
Fire Alarm
Rated Voltage:24 VDC
Operating Voltage:20 To 25VDC
Max. Rated Current:70 mA
Min.SPL:100 dB at 24VDC/1m
Resonant Frequency:Strobe 75 per min
Tone Nature:3 Tone
Housing:Red ABS Plastic
Operat. Temperature:20 T0 80 C
Store Temperature:30 To 70 C
Weight:260 g
Rema
|
|
|
|

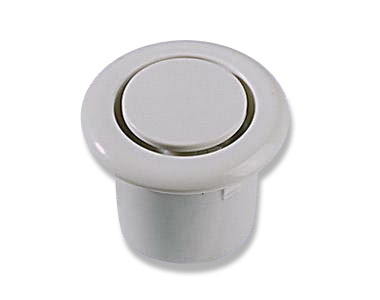

| Model No.:
EPA-54 |
 |
Piezo Alarm
Rated Voltage:12 VDC
Operating Voltage:6 To 15VDC
Max. Rated Current:150 mA
Min.SPL:112 dB at 12VDC/1m
Resonant Frequency:2.3 To 2.8 Khz
Tone Nature:Continue
Housing:White ABS Plastic
Operat. Temperature:20 T0 65 C
Store Temperature:30 To 70 C
Weight:15g
Remar
|
|
|
|

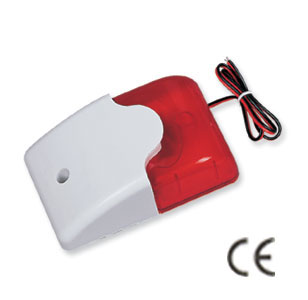

| Model No.:
EPA-73S
|
 |
Piezo Alarm & Strobe
Rated Voltage:12 VDC
Operating Voltage:6 To 15VDC
Max. Rated Current:300 mA
Min.SPL:110 dB at 12VDC/1m
Resonant Frequency:
Tone Nature:Warble
Housing:ABS Plastic
Operat. Temperature:20 T0 70 F
Store Temperature:20 T0 65 F
Weight:150 g
Remark:122*73 mm
|
|
|
|

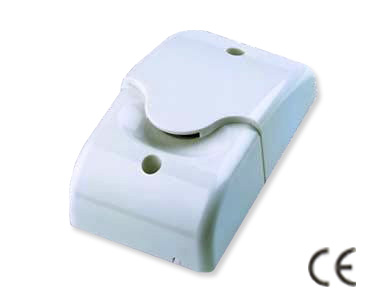

| Model No.:
EPA-73 |
 |
Piezo Alarm
Rated Voltage:12 VDC
Operating Voltage:6 To 15VDC
Max. Rated Current:250 mA
Min.SPL:100 dB at 12VDC/1m
Resonant Frequency:
Tone Nature:Warble
Housing:White ABS Plastic
Operat. Temperature:20 To 70 F
Store Temperature:20 To 60 F
Weight:
Remark:
|
|
|
|
|
|
|
|
