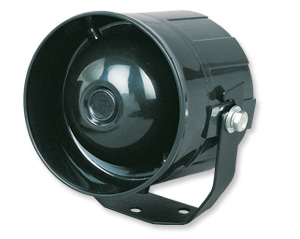

Model No.:
EH-91U |
|
Horn Speaker
Impedance6 Ohm
Voice Coil:1 Inch (ASV)
Magnet:60*32*10mm
Reson Freq:500 To 8 KHz
Power Rating:10 W(RMS)
Min Spl:104 dB/W/M
Housing:Black ABS Plastic
Oper.Temp.:20 T0 60 F
Weight:360 g
Remark:Without Circuit
|
|
|

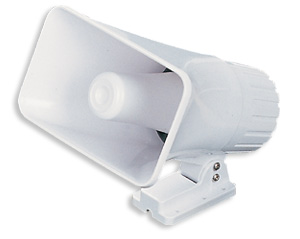

Model No.:
EH-200R |
|
Horn Speaker
Impedance8 Ohm at 1 Khz
Voice Coil:Dia. 33mm
Magnet:80 *40*12 mm
Reson Freq:800 To 8 KHz
Power Rating:20 W(RMS)
Min Spl:103 dB/W/M
Housing:White ABS Plastic
Oper.Temp.:20 T0 60 F
Weight:1050 g
Remark:
|
|
|

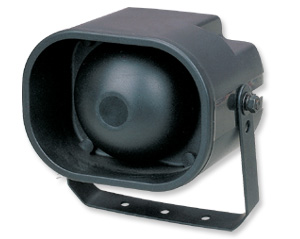

Model No.:
EH-105U |
|
Horn Speaker
Impedance6 Ohm at 1 Khz
Voice Coil:Dia. 25.4mm
Magnet:60*32*10mm(Dia.*H)
Reson Freq:800 To 8 KHz
Power Rating:15 W(RMS)
Min Spl:100 dB at 12VDC/1m
Housing:Black ABS Plastic
Oper.Temp.:20 T0 65 F
Weight:370 g
Remark:CE
|
|
|

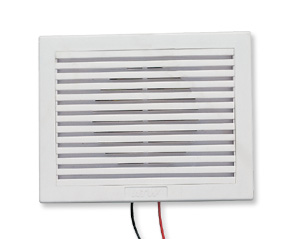

Model No.:
EH-162 |
|
Horn Speaker
Impedance8 Ohm at 1 Khz
Voice Coil:Dia. 20 mm
Magnet:60 *32*8 mm
Reson Freq:800 To 8 KHz
Power Rating:15 W(RMS)
Min Spl:96 dB/W/M
Housing:White ABS Plastic
Oper.Temp.:20 T0 60 F
Weight:350 g
Remark:
|
|
|

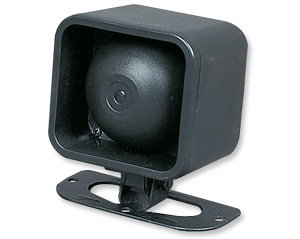

Model No.:
EH-83T |
|
Horn Speaker
Impedance6 Ohm at 1 Khz
Voice Coil:Dia. 25.4mm
Magnet:60*32*10 mm
Reson Freq:600 To 8 KHz
Power Rating:15 W(RMS)
Min Spl:90 dB/W/M Min
Housing:Black ABS Plastic
Oper.Temp.:20 T0 60 F
Weight:360 g
Remark
|
|
|

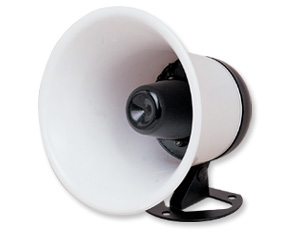

Model No.:
EH-135C |
|
Horn Speaker
Impedance6 Ohm at 1 Khz
Voice Coil:Dia. 25.4mm
Magnet:60*32*10mm
Reson Freq:350 To 7 KHz
Power Rating:15 W(RMS)
Min Spl:90 dB/W/M
Housing:White ABS Plastic
Oper.Temp.:20 T0 60 F
Weight:360 g
Remark:
|
|
|

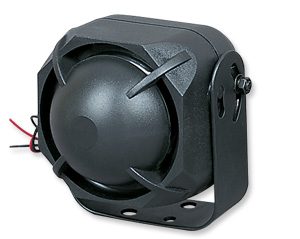

Model No.:
EH-88U |
|
Horn Speaker
Impedance6 Ohm at 1 Khz
Voice Coil:Dia. 25.4mm
Magnet:60*32*10mm(Dia.*H)
Reson Freq:500 To 8 KHz
Power Rating:15 W(RMS)
Min Spl:102 dB at 12VDC/1m
Housing:Black ABS Plastic
Oper.Temp.:20 T0 65 F
Weight:370 g
Remark:CE
|
|
|

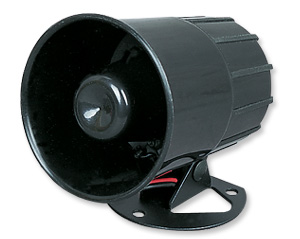

Model No.:
EH-86T |
|
Horn Speaker
Impedance6 Ohm at 1 Khz
Voice Coil:Dia. 25.4mm
Magnet:60*32*10mm(Dia.*H)
Reson Freq:500 To 8 KHz
Power Rating:15 W(RMS)
Min Spl:98 dB at 12VDC/1m
Housing:Black or White ABS Plastic
Oper.Temp.:20 T0 65 F
Weight:370 g
Remark:CE
|
|
|

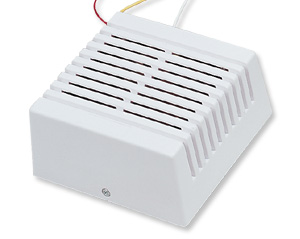

Model No.:
EH-110 |
|
Speaker Horn
Impedance6 Ohm at 1 Khz
Voice Coil:Dia.19.5mm
Magnet:60*32*10mm(Dia.*H)
Reson Freq:500 To 8 KHz
Power Rating:15 W(RMS)
Min Spl:95 dB at 12VDC/1m
Housing:Black or White ABS Plastic
Oper.Temp.:20 T0 65 F
Weight:380 g
Remark:CE
|
|
|

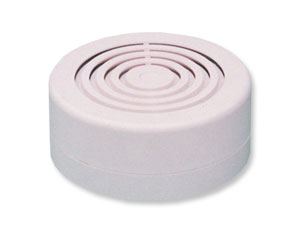

Model No.:
EH-127 |
|
Speaker Horn
Impedance6 Ohm at 1 Khz
Voice Coil:Dia.19.5mm
Magnet:126mm(W)*51mm(H)
Reson Freq:500 To 8 KHz
Power Rating:15 W(RMS)
Min Spl:95 dB at 12VDC/1m
Housing:Black or White ABS Plastic
Oper.Temp.:20 T0 65 F
Weight:380 g
Remark:CE
|
|
|

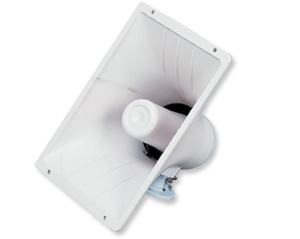

Model No.:
EH-280 |
|
Horn Speaker 40 Watts
Impedance8 Ohm at 1 Khz
Voice Coil:Dia. 38 mm
Magnet:90 *45* 15 mm
Reson Freq:600 To 6 KHz
Power Rating:30 W RMS
Min Spl:96 dB/W/M (min)
Housing:ABS Plastic with Metal bracket support
Oper.Temp.:20 T0 60 F
Weight:500 g
Remark:Ideal for use in Siren or Marine appli
|
|
|

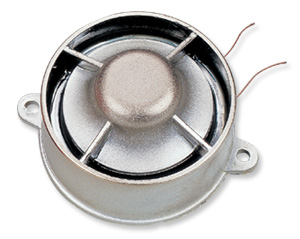

Model No.:
CR49 |
|
Horn Speaker
Impedance4 Ohm
Voice Coil:Dia. 25.4mm
Magnet:24.5*3.5
Reson Freq:1400 to 4000Hz
Power Rating:15W
Min Spl:106.5dB
Housing:Nylon
Oper.Temp.:-20 to +70C
Weight:108g
Remark:
|
|
|
|
|
|
