EAS-202
Outdoor siren
Outdoor Siren
- Nominal Voltage:13.8V
- Alarm current:1.4A(max*2.8A)
- Voltage on terminal[+N]:13.8V+/-0.2V
- Current on terminal[+N]:max 0,6A
- Min.(max) supply voltage:10V(13.8V)
- Battery requirements:2Ah(177*34*66)min
- Maximum alarm-time(programmable):3-10min
- Protection grade:IP34
- Temperature range:-25oC+55oC
- Dimensions:208*252*98mm
- Weight(without 2AH battery):2300g
Description:

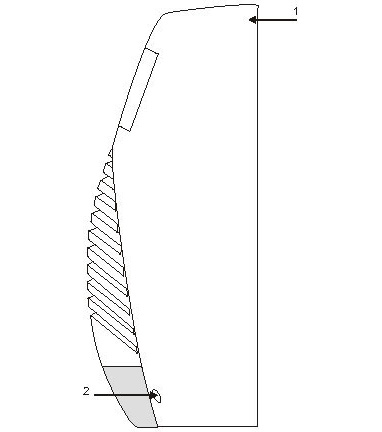

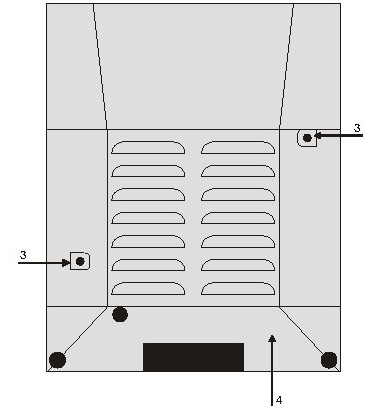

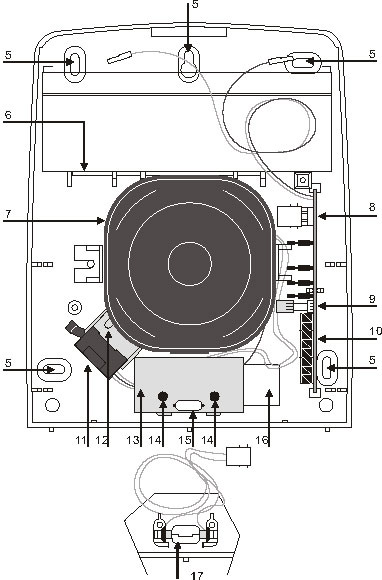

- 1.Cover 2.Cover screw locations(2) 3.Innerplate screw locations(2) 4.Protective innerplate 5.Backplate anchor screw locations(2) 6.Battery location
- 7.Exponential horn 8.Connector for strobe board of flasher bulb 9.Connector for tamper device switch 10.Terminal board 11.Tamper device 12.Tamper device bracket
- 13.Strobe board 14.Strobe board screws(2) 15.Strobe 16.Cable entry 17.Alternative flasherbulb
