DSW08
Home Burglar Alarm
- Power:9VDC(power adapter convert)
- Standby Power:DC9.6V(storage battery)
- Working Frequency:433MHz or 315MHz
- Remote Control Distance:>30m(open position)
- Alarm Current:115mA
- Out Power Static Current:35mA
- Standby power static current:33mA( When out power cut off )
- Sense Distance:6m
- Sense Angle:30

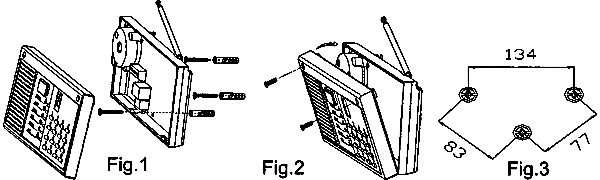

- Installing Height:1.5m-2m
Description:
- 1. It gathers PIR Sensing,dialling and alarming Function. 2. Can save 4 groups telephone numbers. 3. After power cut off, the saved information will not lose. 4. Long-distance intermit alarm and dial. 5. Long-distance monitor hearing scene. 6. Long-distance set the controller. 7. You can use remote controller to operate panic, arm and disarm. 8. 3 sections speeches can be recorded 9. Play function. 10. Operating the controller need password.

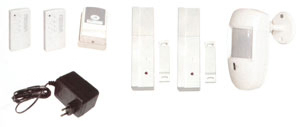

- Control Panel (battery include):1psc Power Adapter (Input 110VAC/230VAC, output 9VDC, current 1000mA):1psc Remote Controller (battery include):2psc PIR Sensor(battery include):1psc Door Magnetism(battery include):2psc
Model No. | Color | Operating Voltage(Vlots) | N.W.(KG) | G.W.(KG) | QTY.(PCS) | Packing Size(cm) |
DSW08 | White | 9VDC | 7.5 | 10.67 | 6 | 44.5X38.5X4.5 |
