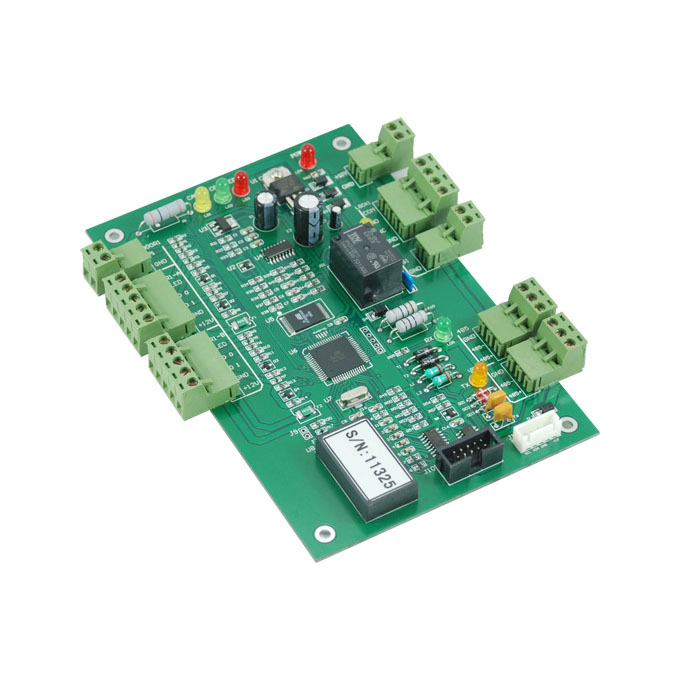

| Model No.:
E2001 |
 |
Access Control
Board dimension:160*106 mm
Door control:one door
Communication:RS232
Protocol:RS485
Number of readers:2 readers
Relay:1
Database Support:ACCESS
Baud Rate:9600 bps for RS232, 10/100M for TCP/IP
Operating Temperature:-40~70
Power Supply Input:12 VDC
Number of cards:20,000
|
  |
|
| Model No.:
E2001.NET |
 |
Access Control
Board dimension:160*106 mm
Door control:one door
Communication:RS232
Protocol:
Number of readers:2 readers
Relay:1
Database Support:ACCESS
Baud Rate:9600 bps for RS232, 10/100M for TCP/IP
Operating Temperature:-40~70
Power Supply Input:12 VDC
Number of cards:20,000
C
|
|
|
|
| Model No.:
E2002 |
|
|
Access Control
Board dimension:160*106 mm
Door control:tow doors
Communication:RS232 RS485
Protocol:
Number of readers:4 readers
Relay:2
Database Support:ACCESS
Baud Rate:9600 bps for RS232, 10/100M for TCP/IP
Operating Temperature:-40~70
Power Supply Input:12 VDC
Number of cards:20,0
|
|
|
|
| Model No.:
E2002.NET |
|
|
Access Control
Board dimension:160*106 mm
Door control:tow doors
Communication:TCP/IP
Protocol:
Number of readers:4 readers
Relay:2
Database Support:ACCESS
Baud Rate:9600 bps for RS232, 10/100M for TCP/IP
Operating Temperature:-40~70
Power Supply Input:12 VDC
Number of cards:20,000
|
|
|
|
| Model No.:
E2004 |
|
|
Access Control
Board dimension:218*106 mm
Door control:four doors
Communication:RS232 RS485
Protocol:
Number of readers:4 readers
Relay:4
Database Support:ACCESS
Baud Rate:9600 bps for RS232, 10/100M for TCP/IP
Operating Temperature:-40~70
Power Supply Input:12 VDC
Number of cards:20,
|
|
|
|
| Model No.:
E2004.NET |
|
|
Access Control
Board dimension:218*106 mm
Door control:four doors
Communication:TCP/IP
Protocol:
Number of readers:4 readers
Relay:4
Database Support:ACCESS
Baud Rate:9600 bps for RS232, 10/100M for TCP/IP
Operating Temperature:-40~70
Power Supply Input:12 VDC
Number of cards:20,000
|
|
|
|
