Frequency:ISM 2,400 - 2,483MHz
Antenna: Omni-directional antenna
Display:2.5" LTPS-TFT LCD(Anolog) ;2.4G"LTPS-TFT LCD (Digtal)
Channel: 1-4 (Flip-type switch)
Intermediate Frequency: 480MHz
Frequency Stabilization: +/- 100KHz
Demodulation Mode: FM
Receiving Sensitivity:<=-85dBm
Video Output:1Vp-p at 75 ohm, S/N>38dB
Audio Output:1Vp-p at 600 ohm
Power:DC 5V;Buit-in Li-Battery
Operating Temperature:-10oC ~ +40oC
Operating Humidity: 85%RH
Dimension(WxLxH):75x35x130mm
Weight: 630g |
Frequency:ISM 2,400 - 2,483MHz
Imaging Sensor:1/3 inch OMNIVISION Color CMOS
Horizontal Resolution: 380TV Line
CMOS Total Pixels:628 x 582 (PAL) / 510 x 492 (NTSC)
View Angles:62 degrees
Minimum Illumination:1.0Lux / F1.5
Gain Control:Automatic
Transmission Power:10mW
Consumption Current:80 mA
Modulation Mode:FM
Bandwidth:18M
Operating Range:30m/100m (Obstructed / Unobstructed)
Power:DC 8V
Operating Temperature:-10oC~+40oC
Operating Humidity:85%RH
Dimension(WxLxH):45x45x106 mm
Weight:130g |

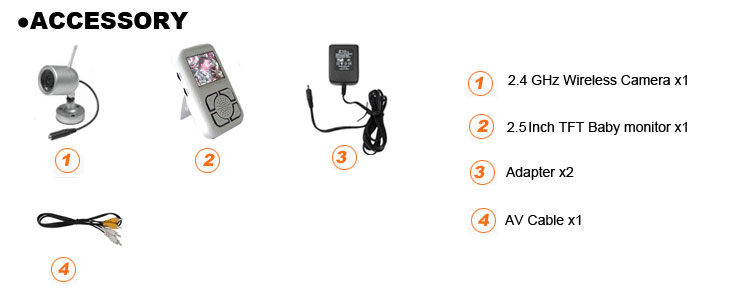

2.4GHz Wireless Color Camera with Built-in Microphone
2.4GHz Wireless 4-channel LCD Receiver
A/V Cable
8V Power Adaptor for Camera
Earphone
5V Power Adaptor for LCD Receiver |
