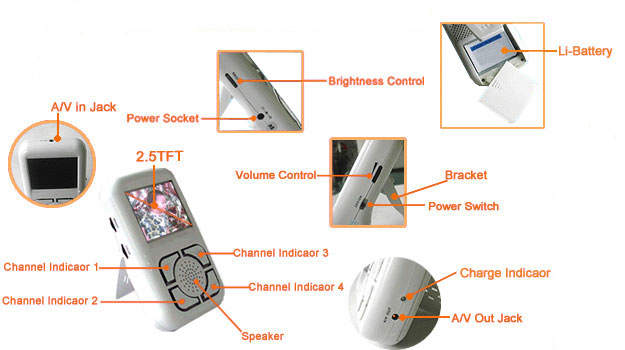

Frequency: ISM 2,400 - 2,483MHz Antenna: Omni-directional antenna Display :2.5" LTPS-TFT LCD(Anolog) ;2.4G"LTPS-TFT LCD (Digtal) Channel: 1-4 (Flip-type switch) Intermediate Frequency: 480MHz Frequency Stabilization: +/- 100KHz Demodulation Mode: FM Receiving Sensitivity:<=-85dBm Video Output: 1Vp-p at 75 ohm, S/N>38dB Audio Output: 1Vp-p at 600 ohm Power:DC 5V ;Buit-in Li-Battery Operating Temperature: -10oC ~ +40oC Operating Humidity: 85%RH Dimension(WxLxH): 75x35x130mm Weight: 630g |
Frequency:ISM 2,400 - 2,483MHz Imaging Sensor:1/3 inch OMNIVISION Color CMOS Horizontal Resolution: 380TV Line CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC) View Angles:62 degrees Minimum Illumination:1.0Lux / F1.5 Gain Control: Automatic Transmission Power: 10mW Consumption Current: 80 mA Modulation Mode:FM Bandwidth: 18M Operating Range: 30m/100m (Obstructed / Unobstructed) Power:DC 5V or 5V Li-Battery Operating Temperature:-10oC~+40oC Operating Humidity: 85%RH Dimension(WxLxH) 36x36x48 mm Weight:60g |

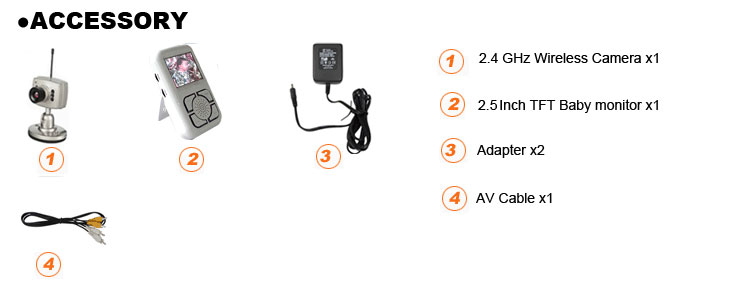

2.4GHz Wireless Color Camera with Built-in Microphone 2.4GHz Wireless 4-channel LCD Receiver A/V Cable 8V Power Adaptor for Camera Earphone 5V Power Adaptor for LCD Receiver |
