BQ104
Quad Processors
Simple B/W Quad Processor
- Video Standard:CCIR:50fields/second EIA:60fields/second
- Digital Memory:CCIR:720*76 EIA:720*80
- Video Input:4 loops BNC 1.0Vp-p composite 75ohms
- Video Output:1.0Vp-p 75Ω
- VCR Input:1.0Vp-p 75Ω
- VCR Output:1.0Vp-p 75Ω
- Alarm Input:4 Active TTL High/Low Input(one mating connector)
- Alarm Output:1 Programmable as Normally Open or Normally Close
- Alarm Duration:0-30seconds
- Alarm Mode:Video Loss Alarm ,Video Motion Alarm, External Alarm
- Display Mode:Sequence Switch , Single picture, Four pictures
- Power Consumption:DC12V 3.6W
- Net Weight:0.94kg
- Ambient Temperature:-30~60~

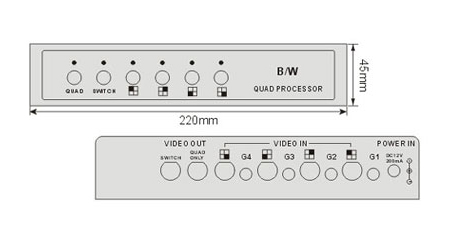

- Dimension:220mm(W)*53mm(D)*5mm(H)
