Model No.:

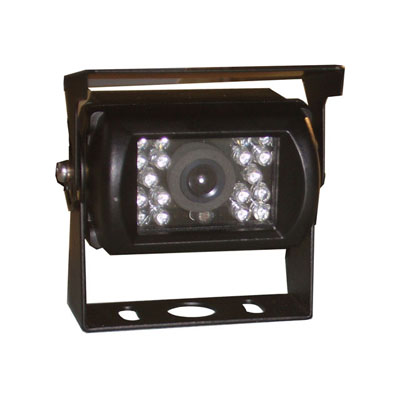

DSW-0107 |
|
Car Backup Reversing Assistant Camera
Image Sensor:1/4 SHARP COLOR CCD
Effective Pixels:PAL:512(H)*582(V) NTSC:512(H)*492(V)
Horizontal Resolution:420TVL
Minimun Illumination:0 Lux when LED on,color turns to black and white automatically
Lens:2.4mm (1.8mm optional if required)
Viewing Angle:120 degrees /(170 degrees optio
|
|
|
Model No.:

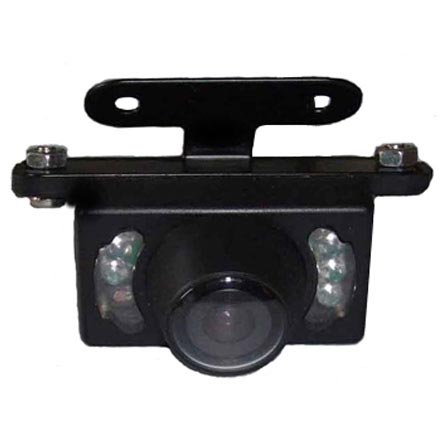

DSW4913 |
|
Car Backup Reversing Assistant Camera
Image device:color CMOS OV7949
Effective pixels:628*586(PAL)/510*496 (NTSC)
Scanning System:2:1 interlace
Sync. system:internal
Resolution:420 TV lines
Mini.illumination:0 Lux with IR on
Video Out:1.0 vp-p,75 Ohm
Gamma Consumption:0.45
S/N ratio:48db
Electronic shutter:1/5
|
|
|
Model No.:

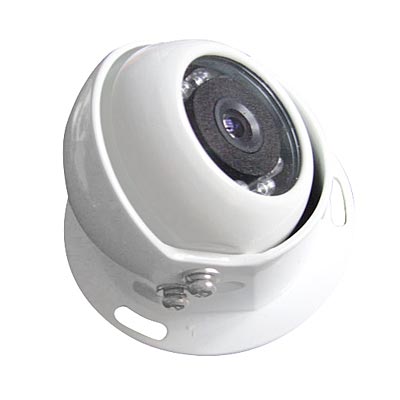

DSW-0118 |
|
Car Backup Reversing Assistant Camera
Image Sensor:SHARP COLOR CCD
Effective Pixels:PAL:512(H)*582(V) NTSC:512(H)*492(V)
Horizontal Resolution:420TVL
Minimun Illumination:0 Lux when LED on,color turns to black and white automatically
Lens:2.4mm
Viewing Angle:120 degrees
Synchronizing System:Internal
S/N Ratio:°4
|
|
|
