CQ2016

Video Multiplexer

  • 16-CH B/W Video Multiplexer
  • Video Standard:CCIR:50fields/second EIA:60fields/second
  • Digital Memory:CCIR:720*576 EIA:720*480
  • Video Input:16 loops BNC,1.0Vp-p composite,individually optional 75ohms or Hi impedance
  • Video output:Main Monitor:1 loop:1.0Vp-p 75Ω
  • Call Monitor:1 loop:1.0Vp-p 75Ω
  • VCR Input:1.0Vp-p 75Ω
  • VCR Output:1.0Vp-p 75Ω
  • Alarm Input:16 Active TTL High/Low Input(one mating connector)
  • Alarm Output:1 Programmable as Normally Open or Normally Close
  • Alarm Duration:Programmable 2-999 seconds,4 seconds default
  • Alarm Mode:Video Loss Alarm,Video Motion Alarm,External Alarm
  • Display Mode:Sequence Switch,Single picture,PIP,Four pictures,Nine pictures,Sixteen pictures,Zoom function
  • Interface Control:RS232(Keyboard KY2301,Device Server,Rc101 Control option)
  • Power Consumption:DC12V 18W
  • Net Weight:3.3kg
  • Ambient Temperature:-30~60

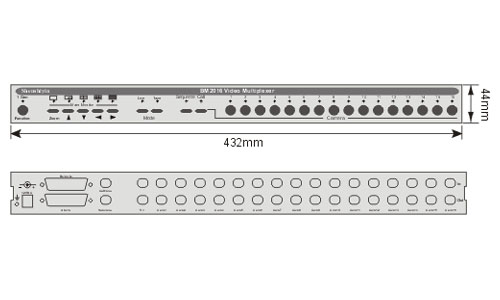

  • Dimensions:432mm(W)*311mm(D)*44mm(H) (See System Diagram200,300,400)
