MCS-1203
Magnetic Contact
Overhead Door Contact
- Type:Overhead Door Contact
- Contact Type:Closed Loop
- Contact Rating :Breakdown Voltage 100v / Max.Switch Current 0.5A
- Opera. Gap:3 Inch
- Magnet:
- Lead Wire:Wire:#22AWG with 22 Armoured Cable
- Housing:Alum Case

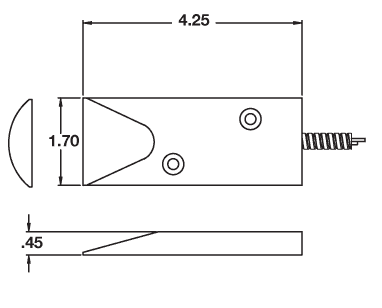

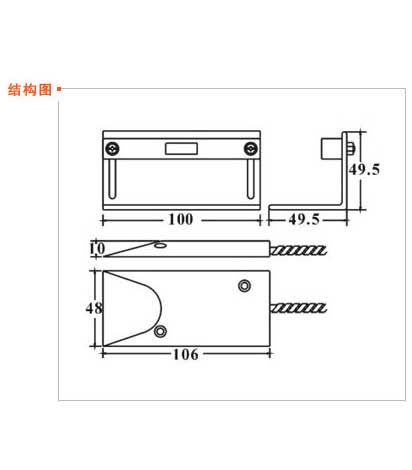

- Dim:104.5*44.5MM
- Listings:CE,UL,CUL
- Remark:A:Open or C:Closed& Open
Description:
24" armored cable is standard Standard gap -- 2-3/8" (60mm) minimum Epoxy sealed for protection from moisture and impact Rugged "Shock absorber" design protects reed against flex or damage to housing
Adjustable magnet with L bracket for fast installation
- LOW PROFILE SWITCH ENCLOSED IN DIE-CAST HOUSING, MAGNET MOUNTED ON ADJUSTABLE L-BRACKET, 24" STAINLESS STEEL ARMORED CABLE
