LD5 Series

Low Speed Dome

  • Low noise design
  • Pan range 0o~360o
  • Tilt range 0o~90o
  • 64 preset positions
  • 6 cruising tracks, each cruising track has
  • 16 preset positions
  • Multi-protocol, RS485 data communication
  • AC24V input
  • cart
Description:
  • Low Speed Dome
  • Low Speed Dome

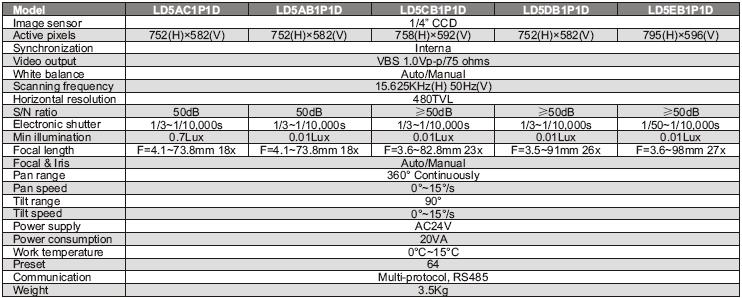

Model LD5AC1P1D LD5AB1P1D LD5CB1P1D LD5DB1P1D LD5EB1P1D
Image sensor 1/4" CCD
Active pixels 752(H)×582(V) 752(H)×582(V) 758(H)×592(V) 752(H)×582(V) 795(H)×596(V)
Synchronization Interna
Video output VBS 1.0Vp-p/75 ohms
White balance Auto/Manual
Scanning frequency 15.625KHz(H) 50Hz(V)
Horizontal resolution 480TVL
S/N ratio 50dB 50dB ≥50dB ≥50dB ≥50dB
Electronic shutter 1/3~1/10,000s 1/3~1/10,000s 1/3~1/10,000s 1/3~1/10,000s 1/50~1/10,000s
Min illumination 0.7Lux 0.01Lux 0.01Lux 0.01Lux 0.01Lux
Focal length F=4.1~73.8mm 18x F=4.1~73.8mm 18x F=3.6~82.8mm 23x F=3.5~91mm 26x F=3.6~98mm 27x
Focal & Iris Auto/Manual
Pan speed 0°~15°/s
Tilt speed 0°~15°/s
Pan range 360° Continuously
Tilt range 90°
Power supply AC24V
Power consumption 20VA
Work temperature 0oC~15oC
Preset 64
Communication Multi-protocol, RS485
Weight 3.5Kg
