High Speed Dome

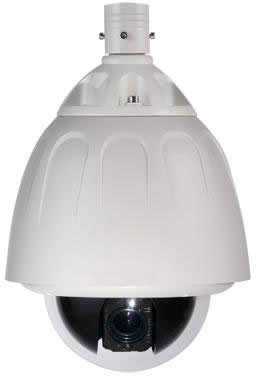

Outdoor Intelligent High Speed Dome Camera
- High Preset Point Precision,30X Optical Zoom
- The speed dome support different integrated camera module including SONY,LG,CNB,YOKO,HITACHI,SUMSUNG...
- Powerful Pan/Tilt function:
- Max. 400°/sec high speed Pan/Tilt turning
- Adopted with vector driving technology,Pan/Tilt motions are accomplished in the shortest path. As a result,time to target is reduced dramatically and the video on the monitor is very natural to watch.
- The lowest speed can touch 0.05°/S.
- Preset,Pattern,Swing,Privacy mask,Group and more functions
- Up to 128 pieces preset point can be memorized.The additional information such as dwell time,alarm action,label...can be set as demand.
- Up to 8 pieces point-to-point auto scan can be memorized. Support proportional shift between zoom and speed.
- Up to 4 patterns can be recorded and played back. It can record 500 operation commands.
- Up to 8 pieces GROUP can be stored,the function enables the camera to move repetitively with combination of Preset or Pattern or Swing. A group contained Max.20 presets,patterns or swings.
- Max.8 of Privacy masks can be located wherever it is required to protect private life. (Only Sony camera module support this function)
- Support Schedule function.
![]() |
![]() |
![]() |
Camera Type & Specifications |
|||
Camera |
Sensor |
1/4" IT Exview HAD CCD SONY |
|
Resolution |
520 lines |
||
S/N |
>48db |
||
Zoom Ratio |
30 times optical zoom; 10 times digital zoom |
||
Focal Length |
F1.6; f=3.3-99mm |
||
Min. Illumination |
0.1Lux |
||
Image Freeze |
Yes |
||
Day/Night |
Yes |
||
Focus |
Auto/Manual |
||
Iris |
Auto |
||
White Balance |
Auto |
||
BLC |
ON/OFF selectable by OSD menu. |
||
Pan/Tilt |
Turning |
Scope |
Pan 360°; Tilt 90° |
Preset |
360°/Sec |
||
Manual |
0.025°~120°/Sec |
||
Swing Speed |
200°/Sec |
||
Auto Scan |
15°/Sec~60°/Sec |
||
Preset Quantity |
128 |
||
Pattern |
2 Patterns, 200 commands every one |
||
Swing |
8 |
||
Group |
5 Groups and each with 10 actions |
||
Protocol |
Pelco-D; Pelco-P; VC; WORLD |
||
OSD |
Support camera module setup and speed pan/tilt setup |
||
Programmable OSD for Pan/Tilt, Zoom camera, |
|||
Swing, Pattern, Group, Schedule... Functions. |
|||
Fan/Heater |
Built-in auto controller heater and fan |
||
Others |
Temperature |
-35°C~50°C |
|
Moisture |
<95% |
||
Power Supply |
AC24V |
||
Consumption |
20W |
||
Heater Consumption |
10W |
