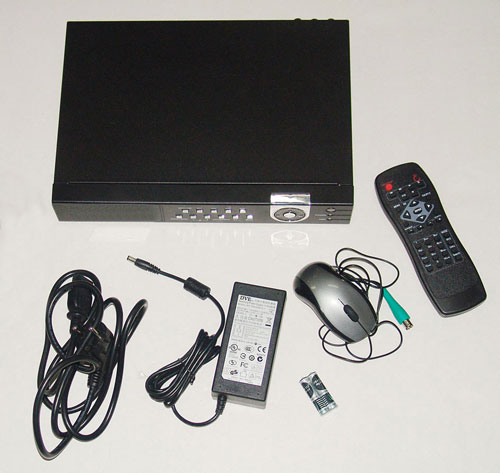

DVR3604/DVR3604V
Standalone DVR
Standalone DVR,Standalone Digital Video Recorder
- H.264 Baseline:9 selectable video quality levels
- Hexaplex operation-simultaneous record,live,playback,backup,control,remote access
- Mixed operation windows-playback video and live monitoring in one screen
- Recording quality can be configured into two groups-better usage of hard disk
- Multi-level password to ensure high degree of security
- Playback search by time or event(alarm,motion,& video loss)
- Support mobile phone,WAP protocol
- Support mouse and IR remote control
- 5 network clients supported
- Multilingual support
Description:

Model Number
|
DVR3604/DVR3604V
|
Video Input Format
|
NTSC / PAL:BNC 4CH In / 1CH Out/SPOT Out
|
Display Resolution
|
NTSC:720x480;PAL:720x576
|
Recording Frame rate(IPS) & Resolution
|
NTSC:30/720x480; 60/720x240; 120/360x240
PAL:25/720x576; 50/720x288; 100/360x288
|
Compression Method
|
Video:H.264 Baseline
Audio:ADPCM
|
Hard Disk Capacity
|
Up to 500G Bytes ,SATA (optional)
|
Recording Time
|
7~20 days with 500GB HD for continuous recording mode @ 25 fps
|
Recording Mode
|
Continuous,Motion detection,Time schedule
|
Sensors,Alarm
|
4 Input,1 Output (Alarm)
|
Audio
|
1CH In,1CH Out
|
Network
|
1 RJ-45 10/100Mbps Ethernet connector
|
Media Backup
|
1 USB 2.0 ports for USB 2.0 flash disks,DVD+RW,DVD±R,HDD
|
VGA Output
|
Optional
|
PTZ Control
|
RS-485
|
IR Remote Controller
|
Yes
|
Operating Temperature
|
0°C~+50°C
|
Power Supply
|
DC 12V/ 3A
|
Dimensions(L*W*H)
|
315mm*224mm*52mm
|
Mobile Surveillance
|
Mobile Phone WAP protocol
|
