KPT-1410
Piezo Transducer
- Rated Voltage:12Vp-p Square Wave
- Max.Allowable Voltage:30Vp-p Square Wave
- Max.Rated Current:2mA at 4.0KHz/12Vp-p Square Wave

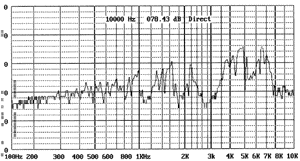

- Min.Sound Pressure Level:80dB at 4.0KHz/12Vp-p
- Square Wave/10cm

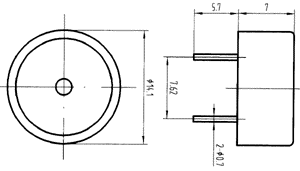

- D(mm):?4.1
- H(mm):7
- Resonant Frequency:4.0?.5KHz
- Operating Temperature:-20~+80
- Weight:1g
- Capacitance at 120Hz:10nF
