• PCB Terminal Block 128IA-500 / 128IA-508
  • Click:

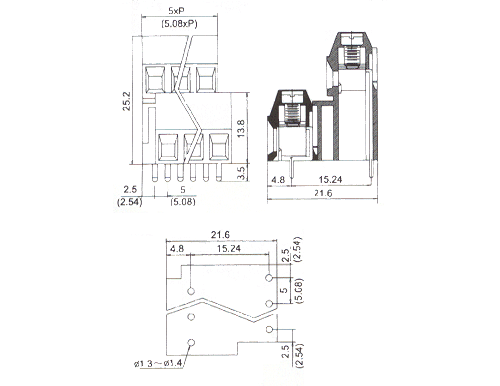

128IA-500 / 128IA-508

PCB Terminal Block

5.00/10.00mm 5.08/10.16mm

  • Voltage rating:300VAC
  • Current rating:10Amps/way max.
  • Insulation resistance:5000M/1000V
  • Wire range:12-24AWG
  • Operation temperature:-33 to+120
  • Torque:4kg-cm/M2.5
  • Satety apporval:<img src="/templets/images/dswbrand/r.gif">
  • cart
Description:
  • PCB Terminal Block
Contact :Steel Stamping Zinc Die Casting or Brass Machined ( Option ) (metal housing) Terminal screw:Steel Galvanized and chormatized of Nickel plated or Tin plated (Standard option) Suface of solder tail:Brass With Tin Plated Insulator body:Polyamide(Glass filled) (housing) (UL94V-0)
