Advanced "true motion recognition" technology, which can recognize the intruder from other interfering factors Up-to-date optical circuit design - column lens, super sensitivity Full-ranged automatic temperature compensation, super wrong alarm resistance Innovative appearance design, European and America up-to-date popular style Different colors for option (coral red, sea blue, dark green, cyan, classic white) |
 |
  |
 |
 |
Model |
DDT-235M |
DDT-235DMF |
DDT-235DMT |

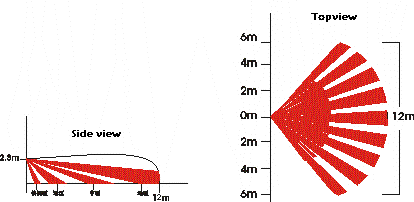

Detection distance |
12m*12m
|
12m*12m
|
12m*12m
|
Sensor |
Low noise,high sensitivity,Anti-RFI/EMI Dual-E PIR
|
Intelligent mode |
|
DMF
|
DMT
|
MW frequency |
Non-MW
|
Non-MW
|
Non-MW
|
Detecting speed |
0.2m/s-3.5m/s |
Sensitivity |
Self-adaption of frequency tracing |
Alarm-output |
NC Contact rating AV/DC 28V/0.2mA |
Supply& current |
9-15V/ DC 30mA |
Temp & humidity |
-30°C-70癈 5%-95% (RH) |
PIR zones |
9+5=14
|
Installation height |
1.8m-2.4m |
Installation way |
Wall-mounting |
Tamper output |
NC Contact rating AV/DC 28V/0.2mA |
Pet immunity |
15Kg
|
25Kg
|
25Kg
|
Anti-white light |
>=8000LUX |
Anti-RFI/EMI |
10V/m(10MHz-100MHz) |
Apply range |
Indoor |
relay |
Solid state relay |
|
